Exploring Broadcast Central Apparatus Room

Central Apparatus Room (CAR) also called central machine room, central equipment room or central technical area is equipped with a range of advanced appliances, tools and features designed to facilitate broadcast operations and routines in maximum reliability and efficiency. The CAR is a critical hub in broadcasting operations, serving as the center for signal processing, routing, and distribution. In this blog post, we explore the essential functions of a central apparatus room, its key equipment, and its impact on live production and signal distribution. Additionally, we address the challenges faced within a Central Technical Area and propose a solution aimed at enhancing the efficiency and reliability of broadcasting operations.

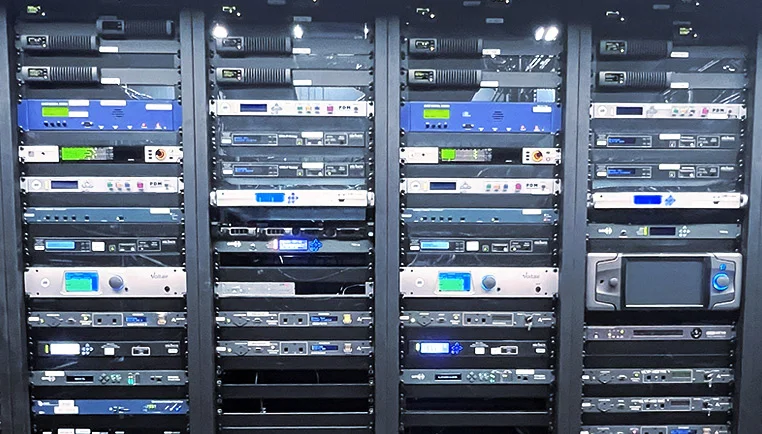

Overview of a Broadcast Central Apparatus Room

A Central Apparatus Room is a dedicated space within broadcasting facilities that houses essential equipment for monitoring, management, and signal processing. A key feature of this central technical area is its capability to manage multiple signals simultaneously, allowing operators to control audio-video feeds and outputs from one location. This integration is essential for ensuring that presentations, live broadcasts, and events proceed without interruptions. Additionally, central machine rooms usually include advanced monitoring systems that provide real-time feedback on signal quality and performance. By investing in a Central Apparatus Room, broadcasters can improve operational efficiency and enhance the overall quality of their productions, ultimately leading to greater audience engagement and satisfaction.

Functions of a broadcast CAR

Central Apparatus Room plays several vital roles in broadcasting, including:

1. Signal Processing and Conversion

CAR is responsible for processing raw audio-video feeds, which may include converting SD signals to HD and 4K formats. This is vital for ensuring that the broadcast operations meet the necessary technical standards and quality requirements.

2. Routing and Switching

In central apparatus rooms signals are routed from various sources to their intended destinations, such as broadcast outputs or recording devices. Routing switchers in the central machine room allow operators to redirect signals quickly and efficiently, facilitating smooth transitions during live broadcasts.

3. Monitoring and Quality Control

Continuous monitoring of audio and video signals is performed in the central machine room to ensure consistent quality. Engineers and technicians assess signal integrity, measuring levels of audio and video quality to identify any issues that may arise during productions.

4. Recording and Archiving

Central apparatus room facilitates the recording of live broadcasts for later uses, including replays or archiving content. This function is essential for producing highlights and maintaining a library of broadcast materials, which is important for content distribution and historical documentation.

5. Signal Distribution

Central machine room manages the distribution of processed signals to various platforms, such as terrestrial, satellite, and online media. This ensures that content reaches different audiences across multiple channels while maintaining signal quality and compliance with broadcast standards.

6. Integration with Other Technical Areas

Central apparatus room coordinates with various other technical areas within the broadcast facility (like editing suites and master control rooms), ensuring a seamless workflow and integration of various processes related to content creation and dissemination.

Key Equipment in a Broadcast Central Machine Room

Among the key equipment in the Central Machine Room are video routers, up/down/cross converters, SDI multiviewers, embedders and de-embedders, distributors and so on, each serving unique and essential functions.

1. Video routers

Broadcast video router modules act as sophisticated signal management systems, enabling the routing of multiple video signals from various sources to different outputs. They facilitate flexible switching between feeds during live broadcasts, ensuring smooth transitions and integration of various video sources. Their ability to handle high-definition and diverse formats is crucial for maintaining broadcast quality across different platforms.

2- Up/down/cross converters

Up/down/cross converters play a critical role in adjusting video signals to meet the requirements and standards of different outputs. Up converters enhance lower-resolution signals to higher resolutions, while down converters reduce high-resolution signals for compatibility with standard-definition displays. Cross converters allow for the conversions between different formats and aspect ratios. This versatility is essential for ensuring that all video signals are displayed correctly, contributing to uniformity in broadcast quality.

3- Multiviewers

Multiviewers provide operators with the capability to monitor multiple video signals simultaneously on one or more screens. They offer a grid-style display of various feeds, enabling real-time oversight during broadcasts. This functionality is particularly valuable in live production settings, where timely decision-making is critical. By allowing operators to ensure the integrity of all video feeds, multiviewers enhance overall broadcast efficiency.

4- Distributors

Distributors are essential for replicating a single input signal to multiple outputs without loss of quality. They enable broadcasters to send identical feeds to various destinations simultaneously. By providing clean and reliable duplication, distributors ensure that all necessary equipment has access to high-quality signals. Additionally, video distribution amplifier modules can enhance this process by boosting signal strength, allowing for longer cable runs without quality degradation, which is crucial for maintaining signal integrity across multiple outputs.

5- Embedders and De-Embedders

Embedders and De-Embedders are crucial for managing audio in relation to video signals. Embedders insert audio tracks into video streams, while De-Embedders extract audio from video signals. This synchronization is vital for maintaining high-quality broadcasts, ensuring that audio tracks remain aligned with their corresponding video. Their role in streamlining the management of discrete audio and video sources enhances the viewer experience.

In summary, the equipment used in Broadcast Central Machine Rooms or rack rooms is integral to the successful operation of broadcasting facilities. The interplay of video routers, up/down/cross converters, multiviewers, embedders, de-embedders, distributors, … forms a comprehensive control room solution that ensures efficient signal management and high-quality content delivery. Regular maintenance and updates of these components are essential to adapt to evolving technologies and meet the demands of modern broadcasting audiences.

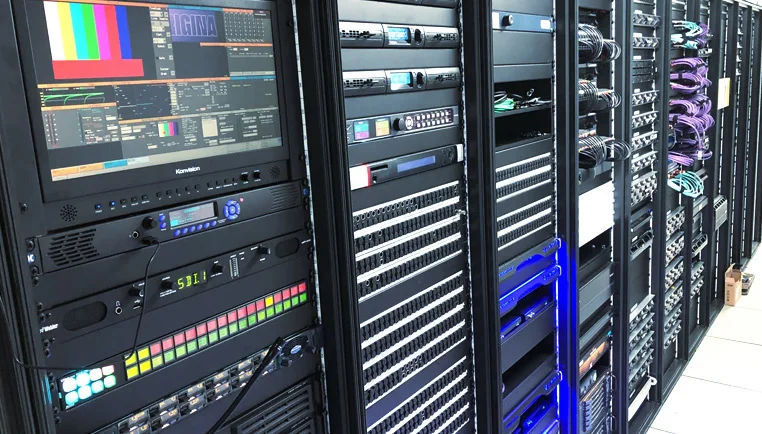

How a central machine room supports live production?

CAR is instrumental in live production by providing real-time signal processing, routing, and monitoring capabilities. During live events, the central apparatus room allows operators to switch between multiple video feeds, manage audio levels, and ensure that all signals are broadcasted seamlessly. The ability to monitor various signals simultaneously using multiviewers enables quick decision-making and immediate troubleshooting, which is essential for maintaining the flow of a live broadcast. Furthermore, the CAR’s recording capabilities ensure that live events can be captured for later viewing or analysis, adding value to the production.

How the central apparatus room supports signal distribution?

The CAR or rack room plays a crucial role in signal distribution by managing how processed signals are sent to various platforms, including television channels, radio, and online streaming services. By utilizing advanced routing and switching technology, the central equipment room ensures that high-quality signals are delivered without interruption. It also adapts to the requirements of different platforms, such as adjusting formats for satellite transmission or online streaming. This flexibility is vital for reaching a diverse audience and maximizing the impact of broadcast content.

Central Technical Area: Challenges and Solutions

Central Technical Area faces several challenges, including equipment obsolescence, signal degradation, and the increasing complexity of broadcast technology. As broadcast standards evolve, ensuring that all equipment is up-to-date and compatible can be a significant hurdle. Additionally, the high demand for live content places pressure on the central apparatus room to operate flawlessly under tight deadlines.

To address these challenges, regular maintenance and upgrades are essential. Implementing a proactive maintenance schedule can help identify potential issues before they escalate, ensuring that all the equipment functions optimally. Additionally, utilizing products from companies that offer reliable after-sales services can significantly aid in addressing these issues. This approach not only ensures the quality and efficiency of the systems but also provides the necessary support to prevent serious problems from arising. Furthermore, investing in training for technical staff can enhance their ability to troubleshoot and resolve the issues quickly, thereby minimizing downtime and maintaining broadcast quality.

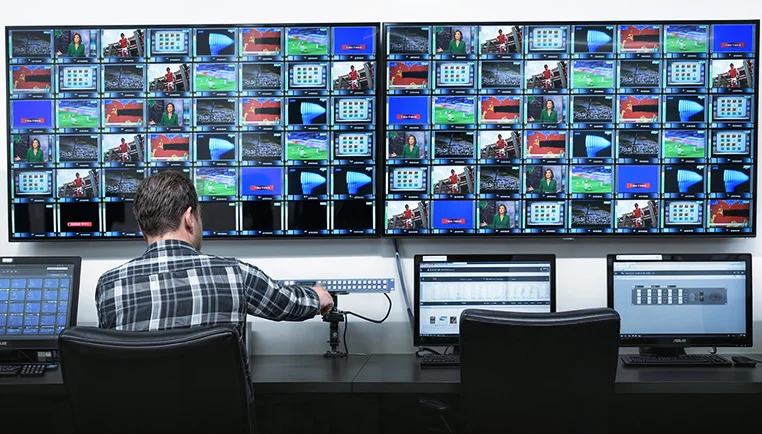

Samim Group’s Solutions for Central Apparatus Rooms

Samim Group, an outstanding provider of high-quality audio and video solutions, offers an extensive range of products designed to meet the diverse needs of the broadcast industry. Our offerings include video routers, up/down/cross converters, multiviewers, embedders and de-embedders, distributors, and much more. Each product features the latest technologies and unmatched quality, making them essential for optimal performance in the central apparatus room of radio-television broadcasting.

Our central apparatus room solutions provide organizations with the flexibility to easily upgrade and expand their capabilities as new technologies develop. By working with Samim Group for your central machine room requirements, you can take advantage of the latest advancements while enhancing their operational efficiency and adaptability. This partnership ensures that companies remain competitive and well-prepared for future challenges in the fast-paced broadcast industry.

Experience the future of television technology with our cutting-edge central apparatus room equipment. Whether you are looking to upgrade your existing infrastructure or establish a new one, Samim Group provides the ideal solutions to enhance your broadcasting capabilities.
