Professional Solution
for Broadcast Production
Control Rooms



Manage your I/O Production Signals Easier

Radio / TV channels usually need a Production Control Division (PCR / SCR) and the related professional equipment to manage and control the input/output broadcast production signals and to check whether they meet the various inbound technical or contextual standards. PCR is the main reference for accessing and regulating all the Audio Video signals in Radio / TV Stations.

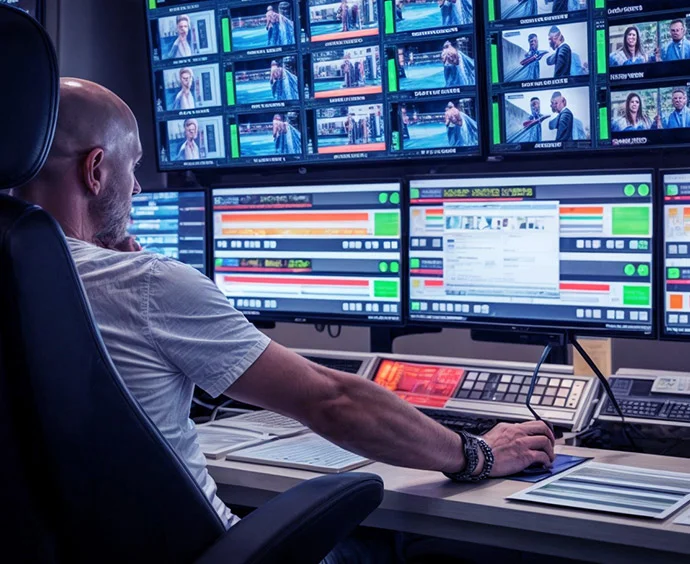

In production control rooms, all the input signals provided by various sources are monitored, processed, and converted into proper formats, types, and levels. Then, they are routed to desired locations using distributor modules and SDI matrix switcher. At the same time, the signals can be monitored and analyzed to ensure they are ready for transmission.

Audio Video Signal ingest
and delivery in PCR

Samim Group's professional solution for production control rooms provides a complete range of equipment to ingest, process, and deliver audio-video signals based on your special needs and requirements.

Production signals may be provided by various live, taped, or pre-recorded sources including broadcast cameras, live AV signals, TS sources, archive media servers, etc. These input signals are duplicated as needed and sent to different locations for different purposes.

Samim Fiber Converters and Signal Routers are the most important equipment to route and send signals to desired areas in a PCR.

For monitoring and analyzing production signals in PCRs, our SDI Multiviewer is used. It can display input signals as different PIP layouts to be visually controlled and checked concerning your quality and content standards.

For processing and converting signals to desired formats and standards up down cross converter modules are utilized in production control rooms . These advanced modules can also displace the embedded audio (a.k.a audio shuffling), synchronize audio and video time and frame, and perform other important signal processing.

Samim matrices in production control room can also send Audio/Video signals to desired areas including editing rooms, control equipment, media servers, archives, ...



Full HD Production Control Room

In-Solution Products

SAMIM up / down / cross converters play a significant role in the broadcast production chain. They convert audio and video formats among 3G, HD, and SD qualities together and render different frame rates.

samim udc3455

SAMIM audio / video distributors redirect audio / video signals from a single source towards several destinations. They are equipped with Re-clockers for jitter removal and equalizers for cable loss compensation.

Samim Audio Video Distributors

SAMIM digital audio/video routers support various numbers of I/O ports and support 3G / HD / SD - SDI signals. For these routing devices, there are flexible control panels that provide easy-to-use remote configuration of signal routing.

Samim SDI Routers

SAMIM control panels are used for the configuration of analog/digital routers. They are manufactured in single and double units and connect to matrices via TCP / IP connections.

Samim Control Panels

SAMIM Embedders and De-Embedders are respectively used for merging and extracting audio (digital / analog) into / from SDI signals. They are equipped with optical I/O, frame synchronization, timing adjustment, ancillary data transparency, and test tone/pattern generation capabilities.

Samim Audio Video Embedder De-embedder

SAMIM multiviewer system is an advanced image processing system for monitoring input signals of 3G / HD / SD - SDI / ASI. It harnesses a user-friendly and intuitive application for designing and tuning PIP layouts for broadcasters.

Samim Frame Multiviewer Router
