FPGA -Accelerated Blade Server for
Maximum Resilience

OMIX is SAMIM’s brand-new product line, offering FPGA-accelerated hardware in a novel 2RU blade-based form factor. It provides a wide range of functionalities applicable in SDI-based environments as well as hybrid or full-IP installations.

In the design of the OMIX product line, our guiding principles revolve around the following: First and foremost, we believe in creating a product that is both powerful and minimalistic. This balance ensures it wields the necessary capabilities without overwhelming the user experience. Secondly, the product is inherently software-defined, offering flexibility and adaptability to cater to diverse user requirements. It is also built upon the bedrock of the latest open protocols, ensuring interoperability and transparency.

Moreover, we are dedicated to making OMIX cost-efficient and low-maintenance, recognizing the importance of practicality and sustainability. Lastly, it is imperative that our OMIX solution not only addresses today’s needs but also remains future-proof, ready to embrace emerging challenges and technologies.

Play Video

OMIX Brochure

Looking to replace the video matrix switcher that you are on the verge of outgrowing, or in search of a highly user-friendly tool to add flexible I/O to your local, distributed, remote, or cloud infrastructure?


Download Brochure

Highlights

Take your production chain to the next level

12G-SDI

12G-SDI

Support for 12G / 3G / HD/ SD-SDI formats

100GBPS

100 Gbps

Line-rate 100GE packet processing

Ingest

Ingest and Transcoding

Compliant to ST2110, JT-NM, NMOS

PTP

PTP

Synchronization through ST2059 as well as legacy BB / TLS

Software-Defined

Software-Defined

Same hardware but different app images

Encompassing

All-Encompassing

Form factor to cover processing as well as signal conversions and distribution

IP-hybrid-sdi

IP, Hybrid, SDI

Apps for every stage of your transition to IP era

API

API

Integrate OMIX to your existing business

Redundancy

Redundancy

Seamless switching based on ST2022-7

Blades

Arrange them as You want for higher efficiency

omix-backpanel

The OMIX platform fulfills a significant portion of the processing requirements, as well as the conversion or distribution of signals, within a live production chain. In this blade-based platform, up to three blades can be installed in each 2RU frame. The available blades include:

  • The power supply blade
  • The signal converter blade can convert or distribute the signals very densely with five slots. Users can choose the required modules independently from available options, such as SDI-to-fiber, fiber-to-SDI, GPIO gateway, SDI distribution amplifier, etc.
  • The SDI/IP processing blade offers a wide range of functionalities, including IP gateway, format conversion, multiviewer, etc., by utilizing a diverse group of I/Os combined with loaded app images.

Components

Powerful infrastructure for flexible functions

Power-Supply-Blade-1

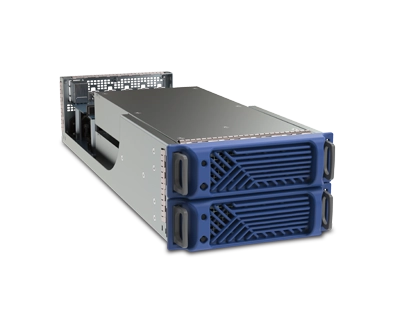

OMIX Power Supply Blade

  • The PSB-50 blade is designed for seamless installation within the DRM-2 frame, delivering essential power to other installed blades. This blade houses two hot-swappable AC to DC power supply modules, ensuring redundancy in operation.
  • The AC to DC modules can be effortlessly inserted from the front, while on the rear panel, you’ll find two AC inputs, five DC output connectors, and a network port for monitoring purposes. The web interface provides comprehensive access to voltage and current data for inputs and outputs, along with the operational status of modules and fans.
  • Furthermore, the PSB-50 boasts attributes such as high efficiency and robust protection mechanisms against short-circuits, over-voltage, overloads, and over-temperature scenarios. It also complies with electromagnetic compatibility standards.
    • OMIX-2RU-Passive-Frame

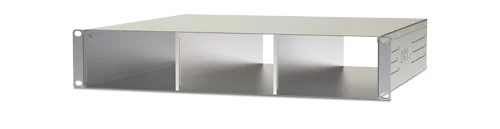

    OMIX 2RU Passive Frame

  • The DRM-2 frame is 2RU high, suitable for 19-inch racks. This passive frame can hold three different types of blades from SAMIM.

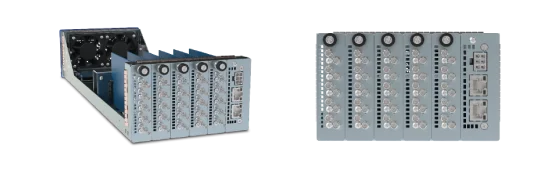

    • OMIX 5-Slot Signal Converter Blade

  • The SCB-50 product is designed to fit into DRM-2 frames, accommodating up to five modules of various types. It allows for easy monitoring and configuration of the installed modules through a web-based interface or API.
  • Within this product, you have the flexibility to install various digital signal distribution amplifiers, fiber converters, and GPIO gateways. Importantly, the installation or replacement of modules can be performed without any disruption to the functionality of other modules already in place. Additionally, this blade offers easy front fan replacement.
    • samim-omix-backpanel
    OMIX-2RU-Passive-Frame

    OMIX 2RU Passive Frame

  • The DRM-2 frame is 2RU high, suitable for 19-inch racks. This passive frame can hold three different types of blades from SAMIM.

    • OMIX 5-Slot Signal Converter Blade

  • The SCB-50 product is designed to fit into DRM-2 frames, accommodating up to five modules of various types. It allows for easy monitoring and configuration of the installed modules through a web-based interface or API.
  • Within this product, you have the flexibility to install various digital signal distribution amplifiers, fiber converters, and GPIO gateways. Importantly, the installation or replacement of modules can be performed without any disruption to the functionality of other modules already in place. Additionally, this blade offers easy front fan replacement.
    • samim-omix-backpanel
    samim-omix-backpanel-5slot-1

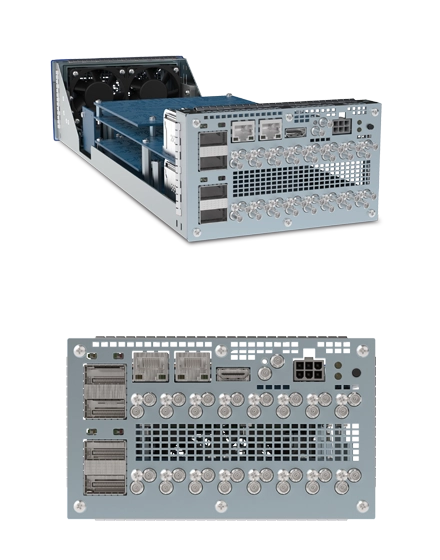

    OMIX X42 SDI / IP Processing Blade


    -  The OMIX X42 SDI / IP processing blade is built upon advanced FPGA and a software-defined architecture. This versatile blade is designed to cater to a wide array of live production applications in accordance with the latest open standards. This architecture, combined with the IP infrastructure, delivers the much-needed flexibility, scalability, resilience, and agility required for modern installations.

    -  On the rear of the device, you’ll find a diverse array of ports, including four 100G Ethernet ports, 32 bi-directional mini-BNC ports supporting 12G-SDI, DC power input, two redundant network ports for out-of-band control, Bi-/Tri-level reference input. This blade, compatible with the DRM-2 frame, also features a front-accessible replaceable fan module, status LEDs on both the front and rear panels, and call buttons for device identification in the monitoring software.

    -  Each “App Image” loaded onto this blade can customize the configuration of the mini-BNCs, depending on the app-specific requirements. In general, inputs and outputs support single-link 12G, 3G, HD, and SD formats. Synchronization can be achieved through reference input or the PTP protocol.

    -  Users have the option to monitor and configure the device through the web interface, REST-API, or AMWA NMOS, allowing seamless integration into the SAMIM Broadcast Controller System or other third-party applications.

    -  This blade offers the flexibility to function as an SDI processor (for tasks such as multi-channel format conversion, frame synchronization, delay adjustment, and MultiViewer), a hybrid processor (serving as a gateway with frame synchronization, distributed frame-accurate routing), or an ST2110 stream processor (without traditional SDI inputs and outputs, for tasks like synchronization, format conversion, color space conversion, MultiViewer).
