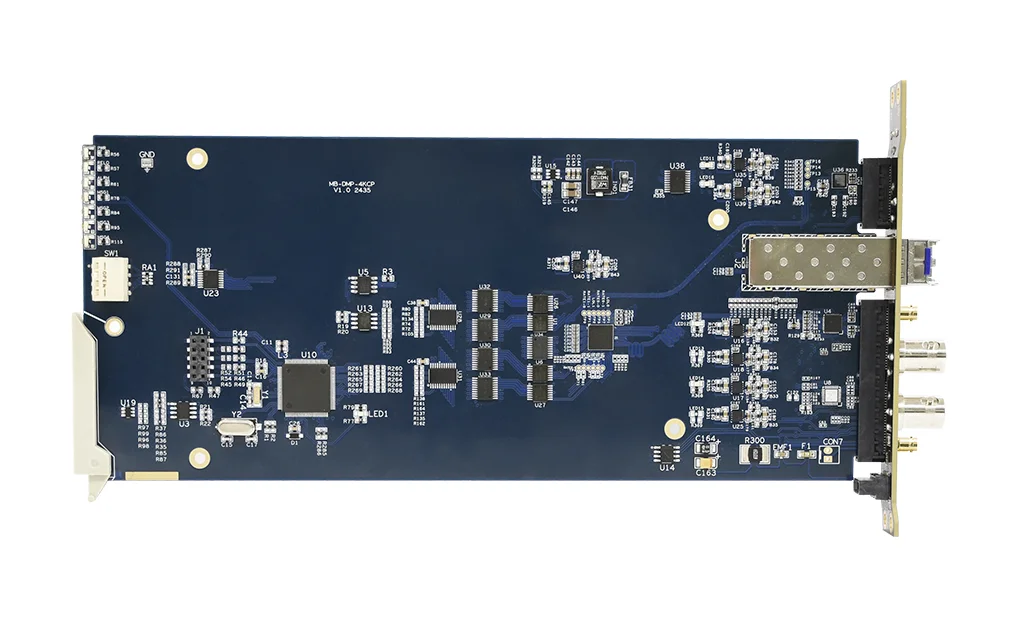

OED-4202 is a converter that changes optical digital video signals into 12G/6G/3G/HD/SD-SDI or DVB-ASI electrical signals. This module can receive two video signals over fiber optic links through an SFP and provides two electrical outputs per channel. It features automatic detection of input signals and performs two conversions on a single board.

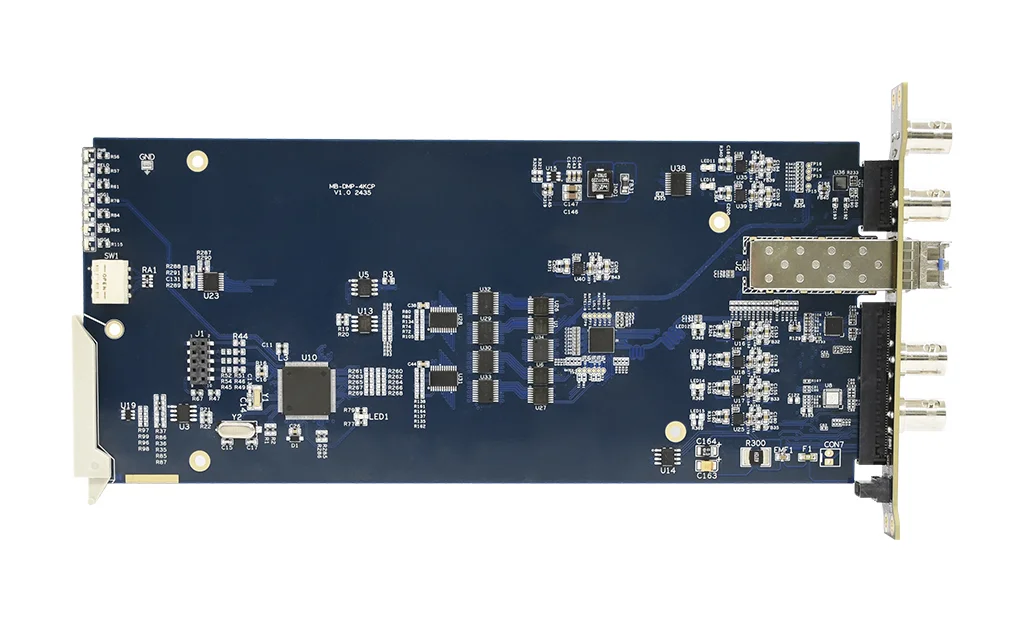

EOD-4202 is a converter that transforms 12G/3G/HD/SD-SDI/ASI electrical signals into optical signals. This module has the ability to transmit two digital video signals through fiber optic connections. It features automatic detection of input signals, performs two conversions on a single circuit board, and re-clocks the input signals.

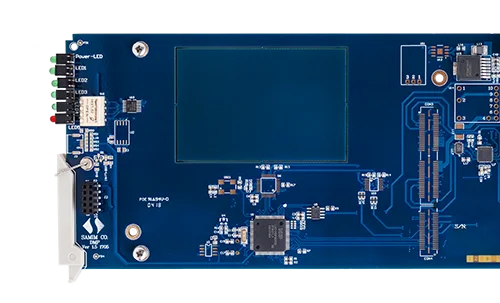

The OED-3904 is a converter of optical digital video signals to 3G/HD/SD-SDI or DVB-ASI electrical signals. The module can receive two video signals over fiber optic links via an SFP and provide four electrical outputs per channel. The OED-3904 performs automatic input signal detection, and two conversions on a single board. Users can use different SFPs with various sensitivity and wavelengths related to the link length and transmitter power. This module offers two distinct routing modes: manual and auto change-over.

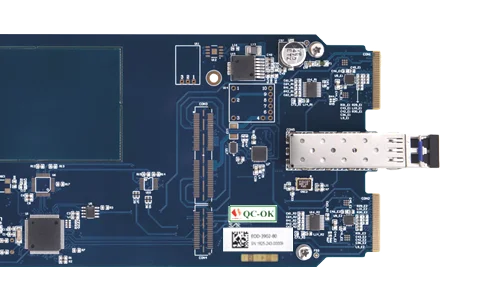

EOD-3902 is a 3G/HD/SD-SDI/ASI electrical signals to optical signals converter. Themodule can transmit two digital video signals over fiber optic links and additionally provide two re-clocked electrical outputs per input. EOD-3902 performs automatic input signal detection, two conversions on a single board, and input signal re-clocking. Users can use different SFPs with various output powers and wavelengths related to the link length and receiver sensitivity.

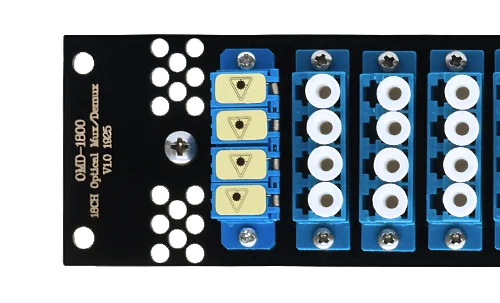

Samim OMD-1800, as a CWDM mux and demux, is a bidirectional passive optical multiplexer and de-multiplexer, allowing multiple optical signals at different wavelengths to pass through a single optical fiber link.
Samim CWDM multiplexer and de-multiplexer combines up to 18 different wavelengths from different optical fibers into a single optical fiber, transceive the link, and separates it back to maximum 18 different wavelength optical signals.
