AVD-0318
Analog Video Distribution Amplifier with Passive Loop (1 to 8)
Samim AVD-0318 is a robust module used for distribute analog video signals to multiple outputs while maintaining the signals’ quality level. It receives one input signal line and provides eight output lines of the same original replicated signal. The module enables broadcasters to replicate analog video feeds in multiple channels and send the exact replications to several destinations without any loss in signal quality or integrity.

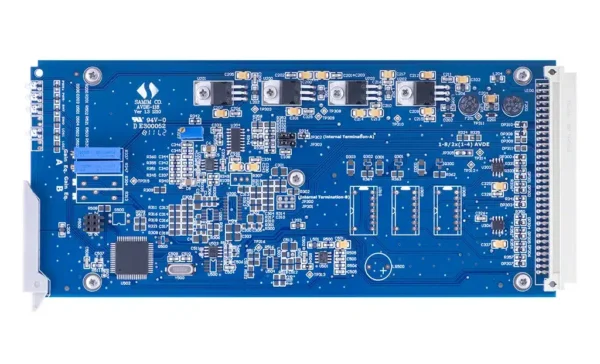

Overview
Samim AVD-0318 is an analog video distribution amplifier with cable equalization and eight outputs. This module provides single-ended input with passive loop-through. The product has been designed in compliance with ITU-R BT.470-6 and can be installed in the Samim 3RU and 1RU frames. Gain control, DC offset removal, and equalizer are the key capabilities of the module.
All adjustments can be applied using onboard jumpers, potentiometers, and the web-based user interface. LED indicators on the front edge of the module can also inform the user about the operational status of the module. Being a high-performance and reliable device, it offers a full 24/7 operability for live broadcast systems and various sensitive applications in the industry.
With its capability to handle multiple outputs, this amplifier ensures that video quality remains pristine across various applications. Ideal for broadcast environments, video conferencing, and educational settings, AVD-0318 meets the rigorous standards set by ITU-R BT.470-6, providing enhanced signal integrity and stability. Additionally, we offer a similar product, but for digital signals, the Digital Video Distributor Amplifier , catering to the evolving needs of modern video distribution systems.
Specifications
| Input | Output | Reference Signal |
Operating Modes | Requirements |
|---|---|---|---|---|
| 75Ω or high impedance (jumper selectable) | Eight amplified outputs | Bi-level and tri-level support | 1 input to 8 outputs | Samim Frame |
Features
- Eight Amplified Outputs:
Distribute video signals to multiple devices without loss of quality. - Input Options:
Select between 75Ω and high impedance inputs using a jumper, accommodating different system requirements. - Reference Signal Support:
Compatible with both bi-level and tri-level reference signals, ensuring versatility in video applications. - Wide-band Frequency Response:
Maintains a flat frequency response, delivering consistent performance across the video spectrum. - Gain Adjustment:
Easily adjust amplification levels to suit specific needs. - DC Offset Control:
Provides the ability to manage and eliminate unwanted DC offsets, enhancing signal clarity. - LED Status Indicators:
Monitor operational status at a glance with intuitive LED indicators. - Web-Based User Interface:
Facilitates easy monitoring and configuration remotely, streamlining setup and management.
Benefits
- Enhanced Signal Integrity:
With eight amplified outputs, Samim AVD-0318 ensures that video signals remain strong and clear, minimizing degradation over distances. - Flexible Input Options:
The ability to switch between input impedances makes this amplifier adaptable to various systems and configurations. - User-Friendly Monitoring:
The web-based interface and LED indicators simplify the monitoring process, allowing for quick adjustments and troubleshooting. - Versatile Application:
Whether in broadcasting, education, or video conferencing, the analog video distribution amplifier is designed to meet diverse needs, ensuring high-quality video distribution in any setting. - Easy Installation:
Designed for straightforward installation in standard frames, reducing setup time and complexity.

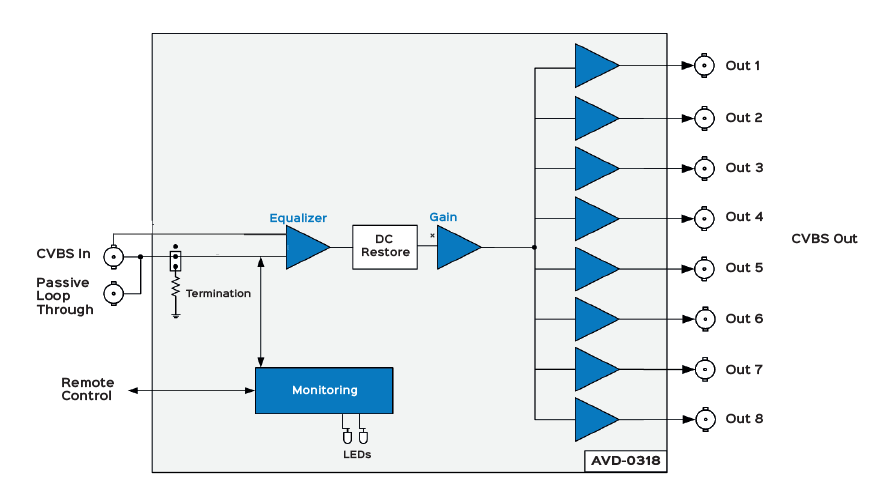

Block Diagram

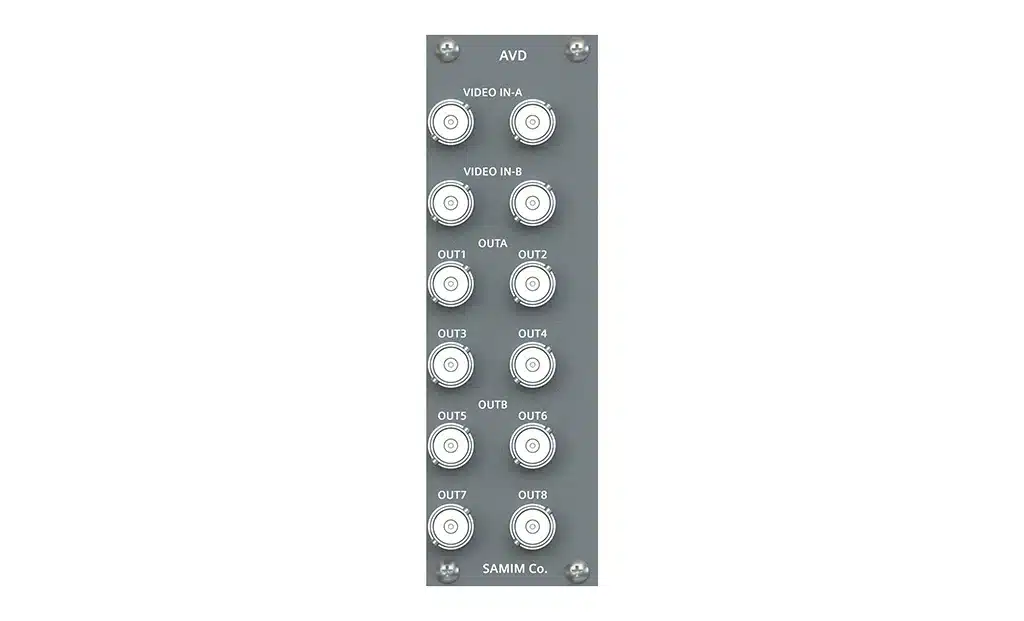

Order Info
| Order Code | Description | Type |
|---|---|---|
| AVD-0318 | HD/SD Analog Video Distribution Amplifier | Main Board |
| AVD-0318-3DRP | Back-panel for AVD-0318 (compatible with SRM-0655) | Back panel |
| AVD-0318-1DRP | Back-panel for AVD-0318 (compatible with SRM-0645) | Back panel |
| AVD-0318-3RP | Single Slot Back-panel for AVD-0318 (compatible with SRM- 0655) , (Only x5 outputs are available, whitout loop output) | Back panel |
Download
| Download Name | Download File |
|---|---|
| AVD-0318-Datasheet | https://www.samimgroup.com/wp-content/uploads/2023/07/Samim-AVD-0318-datasheet-en.pdf |
