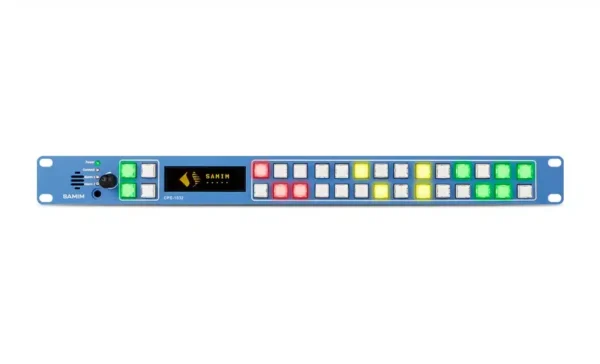

Router Control Panel with OLED Display and 32 Buttons


Router Control Panel with OLED Display and 32 Buttons

  • SAMIM CPE- 1032 is a configurable control panel for a variety of analog/digital audio and video routers. The control panel and a router are connected via a TCP/IP connection.

This control panel has 32 multi-color pushbuttons which can be used in Category and Button Per Source (BPS) modes. The built-in OLED display of the system can be used to show the input/output. The panel can be controlled by its built-in web server. The user of panel can simply adjust its functionality. The control panel has a lot of configurable features such as the operation of buttons and their colors in different modes, work mode (BPS or Category), and the name of the router’s input/output ports.

• 1RU frame
• 3 -color pushbuttons (green, yellow and red)
• Undo button
• Panel lock to prevent accidental selection
• Routes 48 sources to 48 destinations (Category mode)
• Connects to routers through TCP/IP connection
• Easy installation and configuration
• Configurable in ”BPS” and ”Category” mode
• Built-in web server for configuration
• Compatible with all SAMIM routers

Order Code Description Type
CPE-1032 1RU Router Control Panel with Display and 32 Buttons Base

CPE-1032 Datasheet Download
