CPX-1036

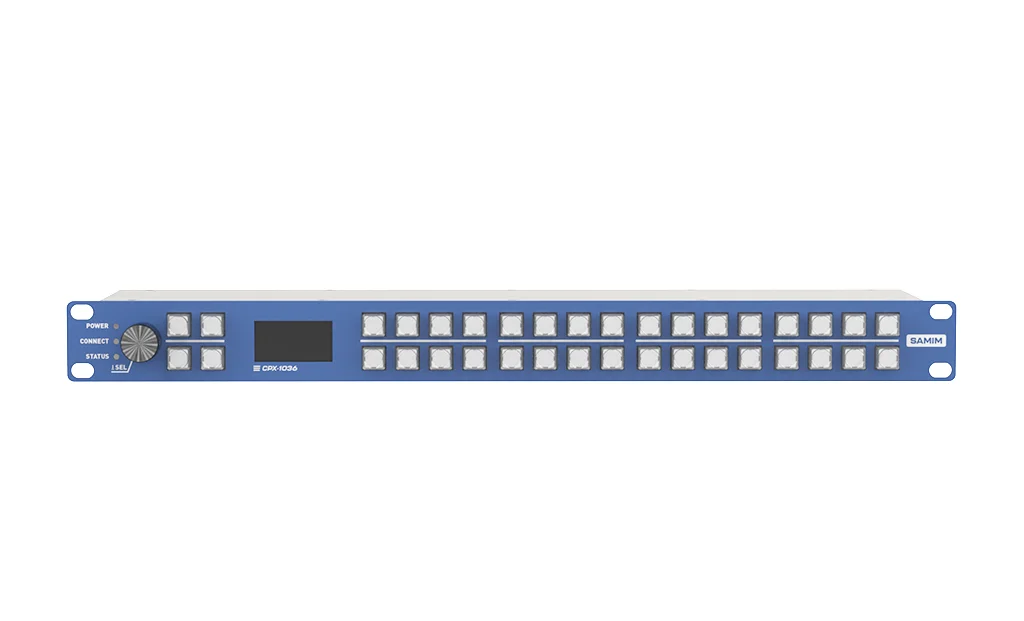

The CPX-1036 is a compact and configurable control panel designed to work with most Samim audio and video routers. Equipped with 36 RGB backlit buttons and an OLED display, this panel offers versatile functionality. Each button is fully configurable, allowing users to assign a variety of tasks such as selecting sources, destinations, categories, executing salvo actions, or managing operations. Additionally, it provides the flexibility to set custom colors for each button.

Samim 1U control panel operates solely based on its programmable settings, ensuring adaptability to diverse operational requirements.
Operating in three distinct modes, namely button per source (BPS), BPS with shift, and category, this panel caters to different workflow needs. In BPS mode, each button corresponds to a specific source or destination. To accommodate a large number of sources and destinations, a additional modes is available. The category mode allows users to organize sources and destinations into distinct categories, accessed via dedicated buttons functioning as a numeric keypad. Regardless of the mode chosen, operators have the capability to execute predefined route
configurations known as salvo actions. Configuration adjustments and management tasks are facilitated through a user-friendly web-based interface. This interface supports label assignment for sources and destinations, as well as the creation and restoration of backups, enhancing operational efficiency.

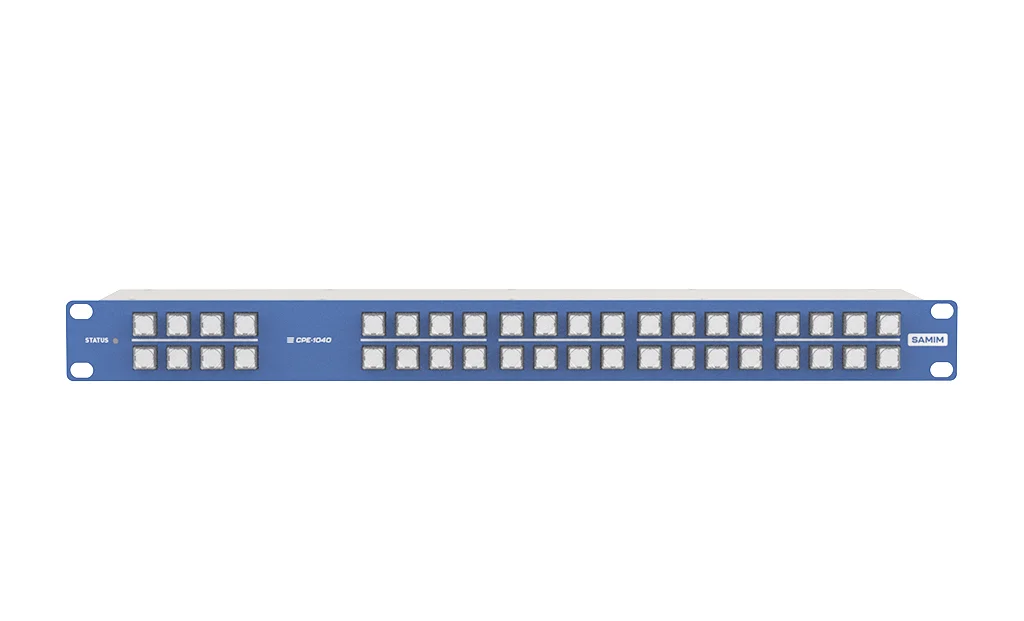

To ease control of bigger routers, each panel support up to three 40-button expansion panels. The CPX-1036 with three expansion panels connected, features 156 buttons with full functionality.
