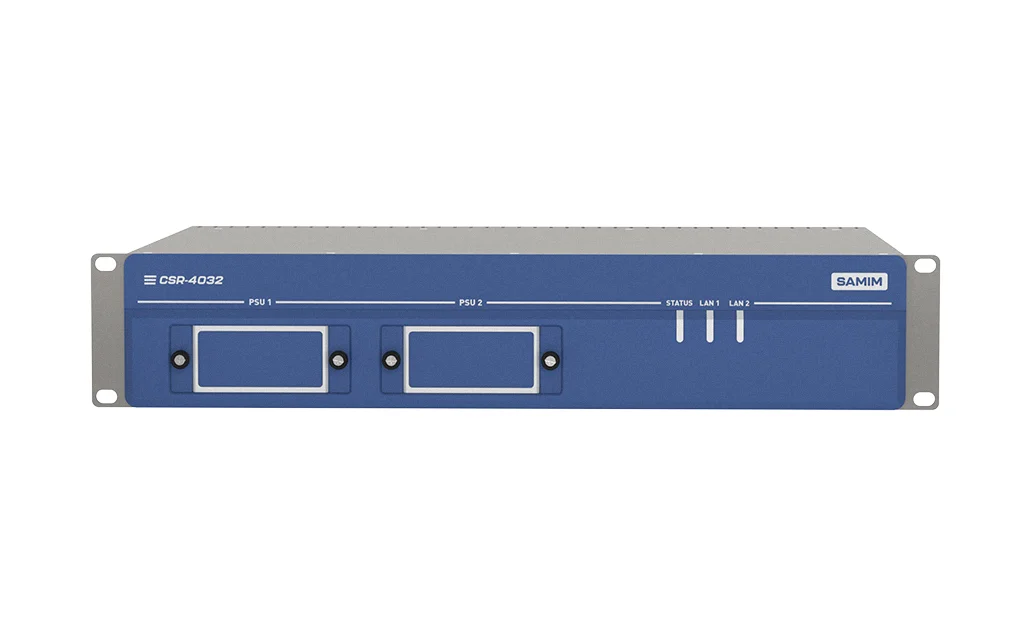

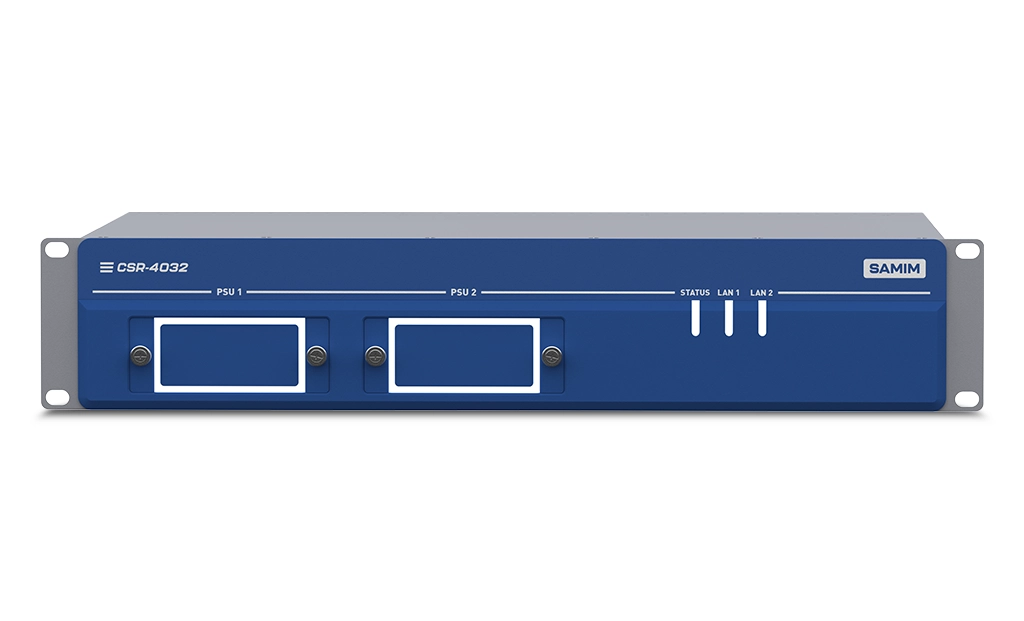

CSR-4032

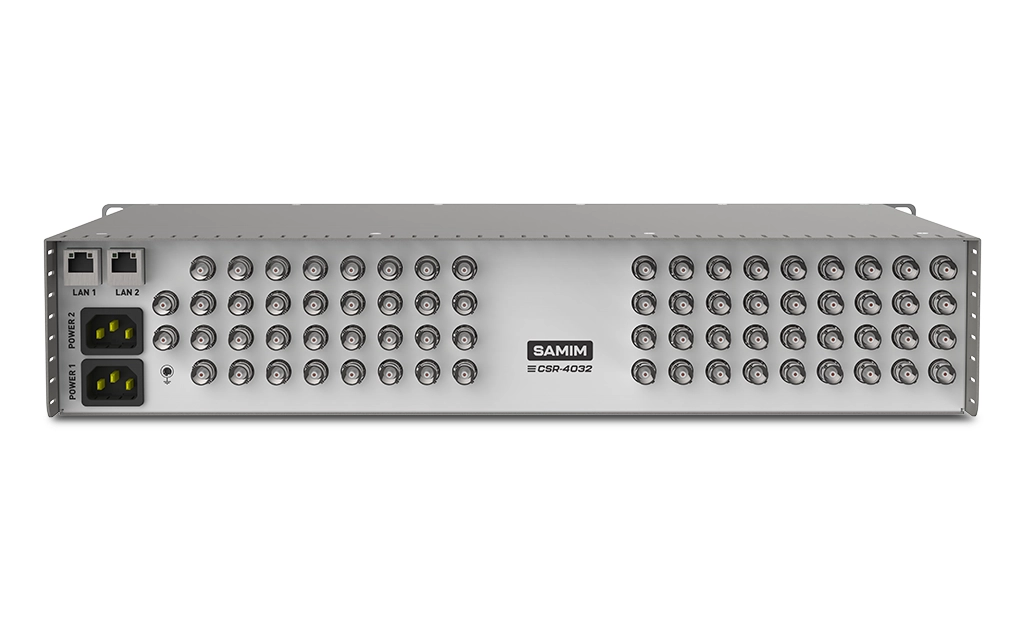

CSR-4032 is designed to meet the demands of small to medium broadcast facilities,offering robust support for 32x 12G/6G/3G/HD/SD-SDI inputs and 32+4x outputs, all housed in a compact 2RU chassis. With its low footprint and redundant network interfaces, along with hot-swappable power supplies, Samim 12G SDI router is ideal for mission-critical installations. Four additional outputs can be configured as independent outputs or monitoring outputs linked to any user-specified input or output. It ensures transparent operation with ancillary and audio data, making it suitable for HDR and Dolby-enabled chains. By utilizing a reference input for switching at standard-defined lines, it minimizes the impact on downstream devices.

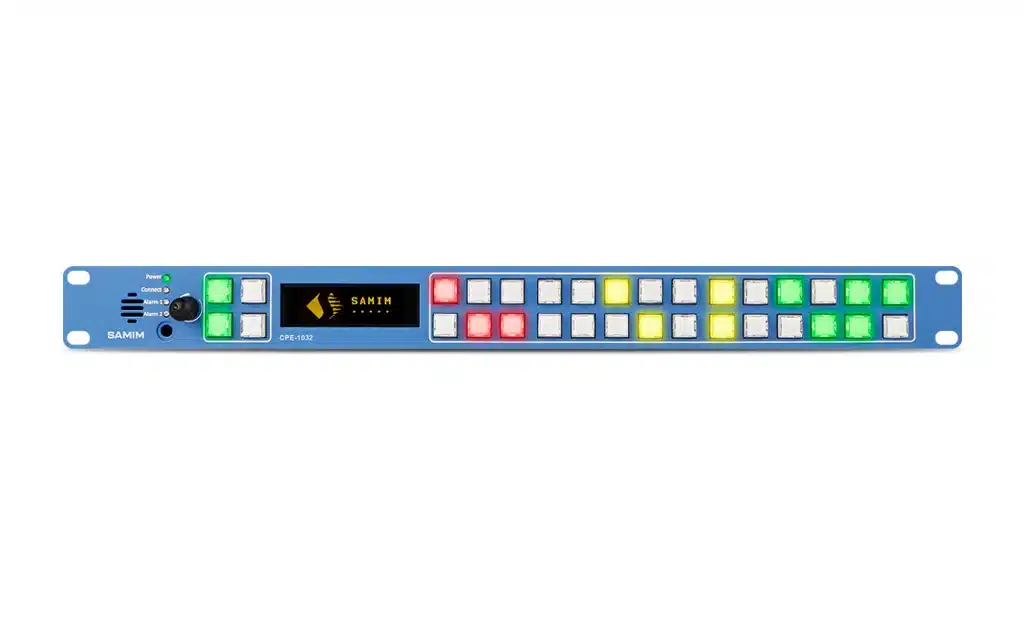

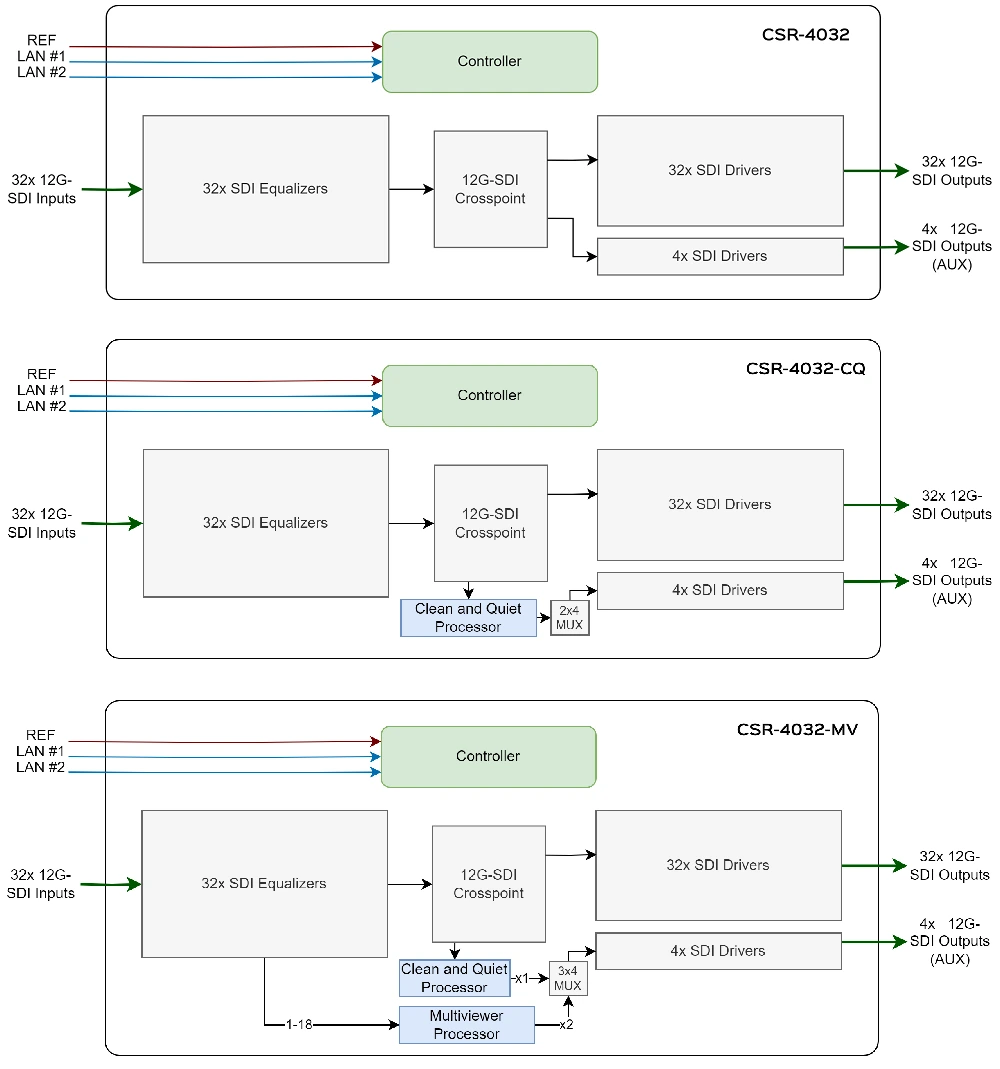

Our 12G SDI Router features an intuitive, integrated web-based user interface for configuration and monitoring, which includes access control, I/O labeling, fixed route definition, log viewing, backup creation, and device health monitoring. Physical control panels and API support enable the application of desired routes with ease. It supports simultaneous connections, salvo actions, and destination locking, enhancing the flexibility of its control options. The enhanced CSR-4032-CQ version adds two outputs with clean and quiet switching. It provides frame synchronization on video and V-fade transition on embedded audio for seamless switching between same-format SDI sources.

The CSR-4032-MV version incorporates multiviewing capability for the first 18 inputs and one clean-and-quiet output. Multi viewer functionality can be utilized in single 18-tile output or dual 9-tile output configurations, making it an ideal solution for OB vans and small studios. This game-changing combination in a 2RU form factor offers exceptional flexibility and performance for a range of broadcast applications.
