DLY-3420
3G / HD / SD-SDI and AES Delay Line
Samim DLY-3420 is a compact modular audio video delay line that helps broadcast production control operators to apply desired delays on video, embedded audio, and four AES inputs. These uncompressed audio-video signals are directly delayed; so that their quality and originality stays completely intact. Live broadcast delay is a great option specially when to monitor contents and to prevent unwanted, inappropriate or profanity items from being mass published.
Overview
Samim DLY-3420 is a compact and modular audio video delay line tool, utilized for setting desired delays on 3G/HD/SD – SDI video, embedded audio and four different AES input signals. Delays by the product are directly applied on the uncompressed signals, so the quality of the signals stays intact. Delays by Samim’s product is a great option, specially when to monitor live broadcast contents and to prevent unwanted and profanity items from being mass published.
Additionally, Samim’s broadcast delay module features frame synchronization, timing adjustments and ancillary data transparency and support.
Control and monitoring 0f the module can be performed using a web-based user-friendly interface which is accessible securely and simply through network protocols.
To put the product into operation, it needs to be mounted into a dedicated frame which is specially designed to house the product, as well as to provide the required power feed, cooling fans and monitoring capabilities.
Specifications
| Signal Types (I/O) | Max. Video Delay | Max. Audio Delay | Requirements |
|---|---|---|---|
| 3G/HD/SD - SDI with Embedded Audio AES Digital Audio | 4500 frames for SD-SDI 1120 frames for 3G/HD - SDI | 180 sec. for AES | Samim Frame |
Features
• 3G/HD/SD-SDI with embedded audio support
• 12G-SDI Ready
• 4x AES inputs and 4x AES outputs (optional)
• Independent delay control for active video, embedded audio, and AES inputs
• Wide video delay range: 2 to 4500 frames in SD, 2 to 1120 frames in HD/3G
(180s in PAL, 44.8s in 1080i50, 22.4s in 1080p50)
• Wide audio delay range: 1 to 170,000 milliseconds
• Two identical outputs (BNC)
• Frame synchronizer with Tri-level / Bi-level reference input
• Ancillary data support
• Web-based user interface
• Remote Firmware Upgrade
Applications

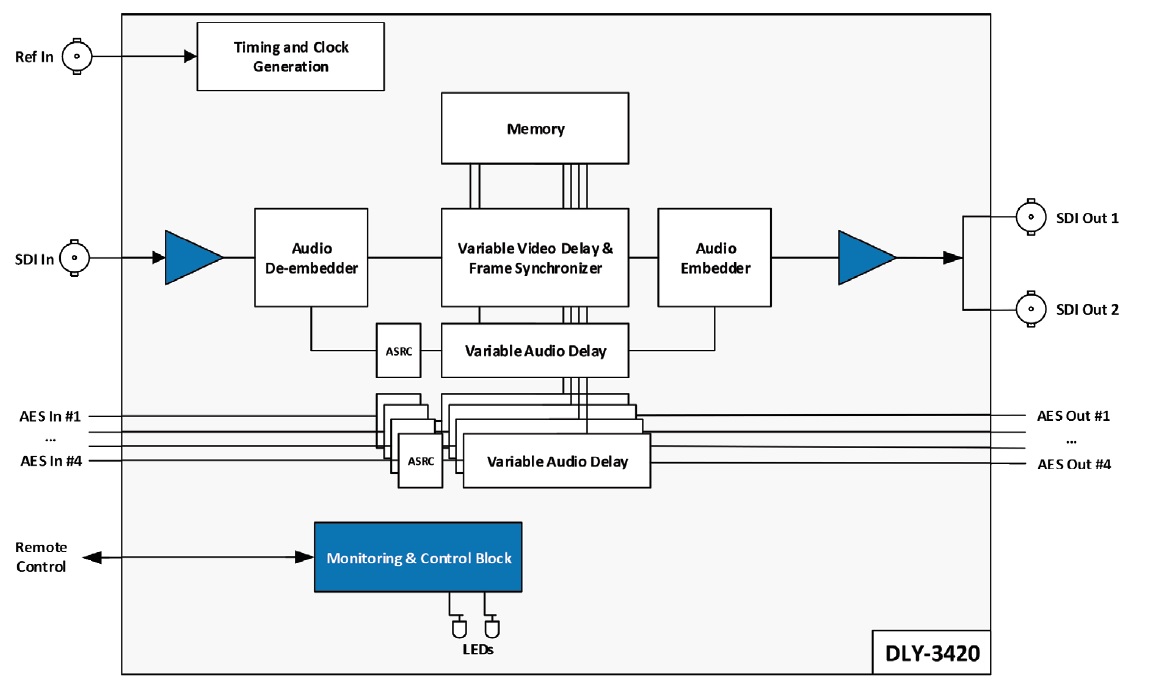

Block Diagram
Order Info

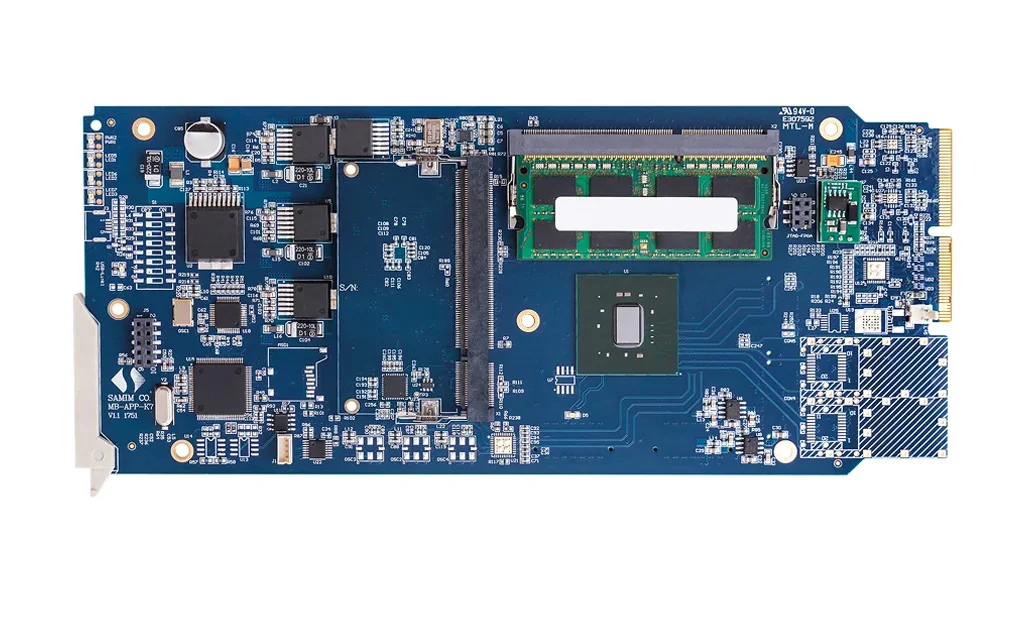

| Order Code | Description | Type |
|---|---|---|
| DLY-3420 | 3G/HD/SD-SDI and AES Delay Line Main Board | Main Board |

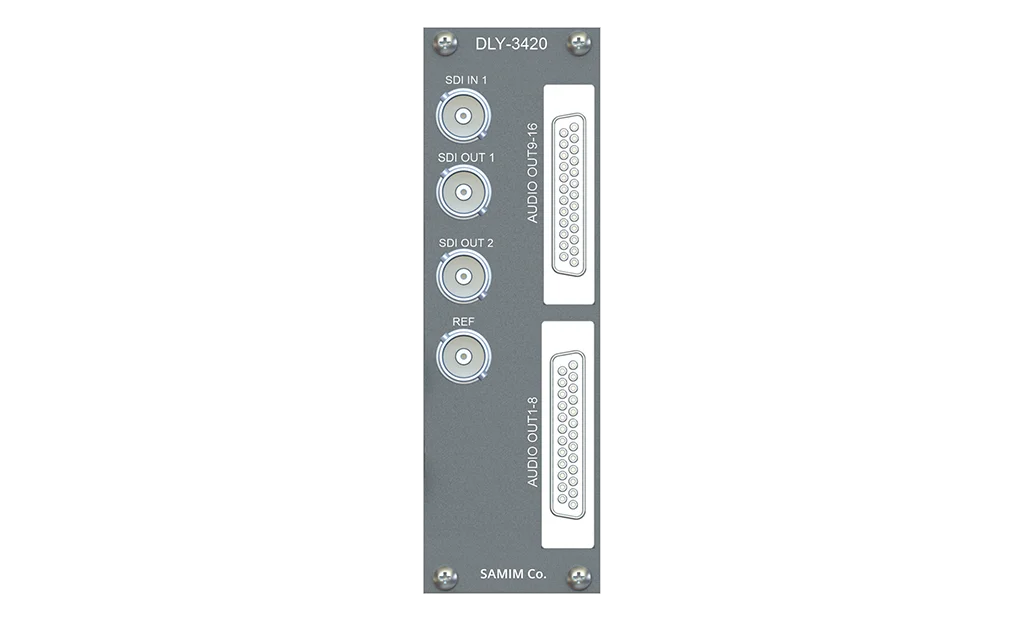

| DLY-3420-3DRP | Back-panel for DLY-3420/3400 (compatible with SRM- 0655) | Back Panel |
| DLY-3420-1DRP | Back-panel for DLY-3420/3400 (compatible with SRM- 0645) | Back Panel |
| MOD-APP-DAI4O4 | 4-Channel Digital Stereo Audio Input + 4-Channel Digital Stereo Audio Output Module | Option for Audio I/O Slot #1 |
Download
| Download Name | Download File |
|---|---|
| DLY-3420-Datasheet | https://www.samimgroup.com/wp-content/uploads/2024/05/Samim-DLY-3420-datasheet-en.pdf |
