DVD-3214
SDI Distribution Amplifier with Bypass Relay (3G/HD/SD-SDI / ASI)
SAMIM DVD-3214 is a professional SDI Video Distribution Amplifier which can be utilized as single-channel or dual-channel signal distribution modules. Accordingly, the product can operate in two different modes of 1 to 8 and 1 to 4 I/O platforms. The main capabilities of the product include Reclocking, equalization, built-in bypass relay and an intuitive changeover switch.
Overview
Samim DVD-3214 is an advanced Digital Video Distribution Amplifier module that enables broadcasters to replicate and send the same video feed to multiple destinations without any loss in signal quality or integrity.
This module is designed for both single-channel and dual-channel applications, providing reliable SDI video signal distribution with high performance, making it ideal for broadcast and production studios, Master Control Rooms, and other professional video environments.
With robust features such as reclocking for jitter removal and cable loss compensation, the Samim DVD-3214 operates as a professional-grade SDI video distribution amplifier, ensuring optimal signal integrity even in demanding setups. As a dependable distribution amplifier, it meets the needs of professionals seeking exceptional performance in video signal management.
For added reliability and assurance in the signal chain, each input signal in our Video Distribution Amplifier can be manually or automatically routed to an output via the module’s built-in bypass relay.
In Samim’s SDI distribution amplifiers, adjustments, controls, and configurations can be managed directly using the onboard DIP switches or through a web-based user interface, accessible anytime, anywhere.
Specifications
| Signal Type (I/O) | Standards |
Operating Modes | Connectors | No. of I/Os | Requirements |
|---|---|---|---|---|---|
| 3G/HD/SD-SDI ASI | SMPTE 292M SMPTE 259M SMPTE 424M | 1 input to 8 outputs (Single Mode) 2 x 1 input to 4 outputs (Dual Mode) | BNC | 2 Inputs 8 Outputs | Samim Frame |
Features
- Supporting 3G/HD/SD-SDI / ASI signals in the modules I/O
- Compatibility with SMPTE 424M, 259M, and 292M, ensuring interoperability with professional video equipment.
- Built-in 2×2 Router which Offers both manual and automatic control for enhanced signal routing flexibility.
- Change over Functionality; Automatic switching between inputs to maintain uninterrupted signal flow.
- Operability as dual mode 2× (1 input to 4 output) and 1× (1 input to 8 output)
- Web-based User Interface supporting SNMP; Intuitive interface for easy configuration and monitoring from any device.
- Input Signal Format Detection; Automatic detection of input signal formats
- Reclocking for Jitter Removal; to enhances signal quality by eliminating jitter, ensuring clear video output.
- Cable Loss Compensation; to mitigates signal degradation over long cable runs.
- Firmware Remote Upgrade; to enables easy updates to keep the device up-to-date with the latest features and improvements.
- Multiple Back Panel Options; Flexibility and scalability in installation to meet specific needs.
- Status LED Indicators; to provide real-time awareness of overall operational status
Benefits
- Enhanced Signal Integrity through Advanced features such as Reclocking for Jitter Removal to reduce the risk of signal loss or degradation.
- Flexible Configuration through adaptability to various setups, whether single-channel or dual-channel, to meet diverse operational needs
- User-Friendly Interface to control, configure and monitor our Video Distribution Amplifier, from any remote device
- High-level Reliability with built-in changeover functionality and bypass relays in the event of power failures or signal blackout.
- Future-Proof Design: With firmware remote upgrade capability, Samim DVD-3214 can evolve with technology advancements, ensuring long-term usability
Applications

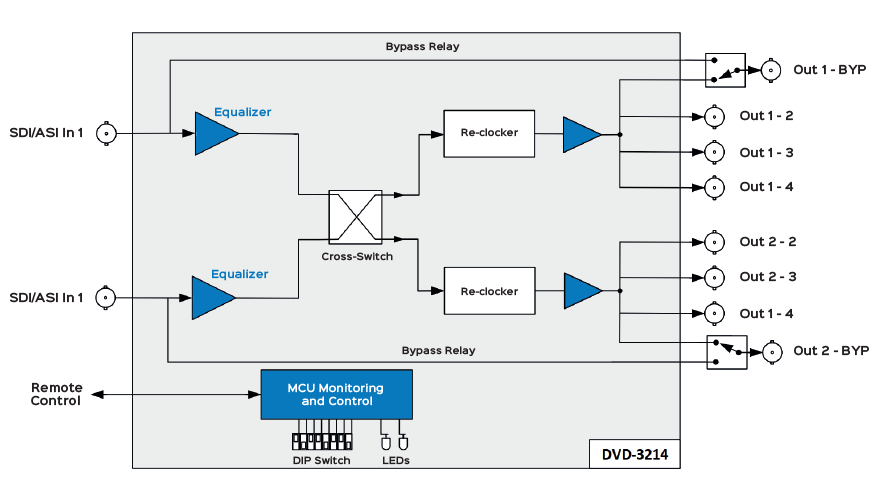

Block Diagram
Order Info
| Order Code | Description | Type |
|---|---|---|

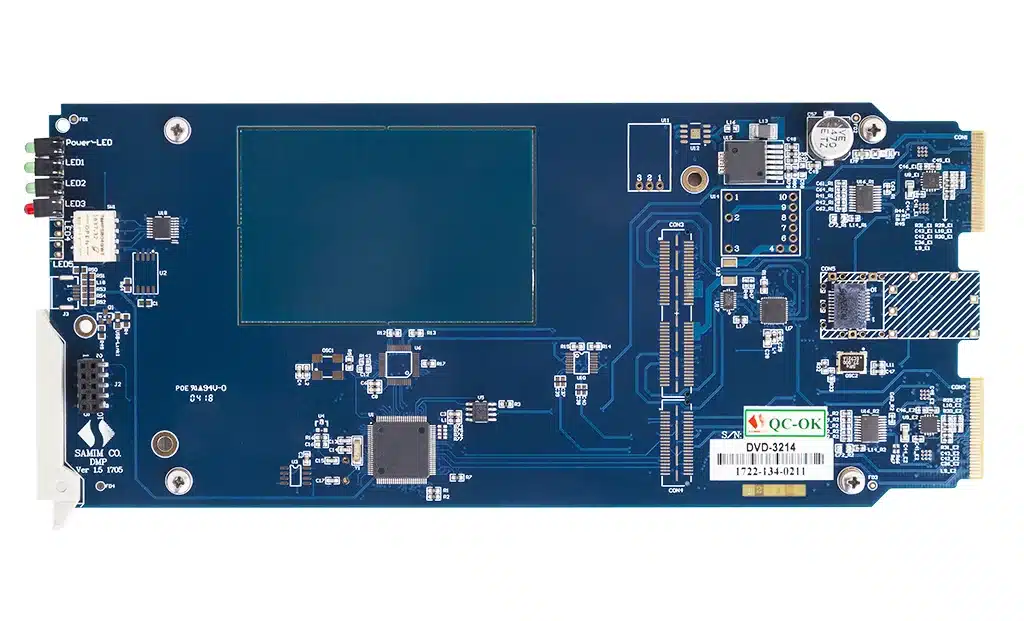

| DVD-3214 | 3G/HD/SD-SDI/ASI Video Distribution Amplifier | Main board |

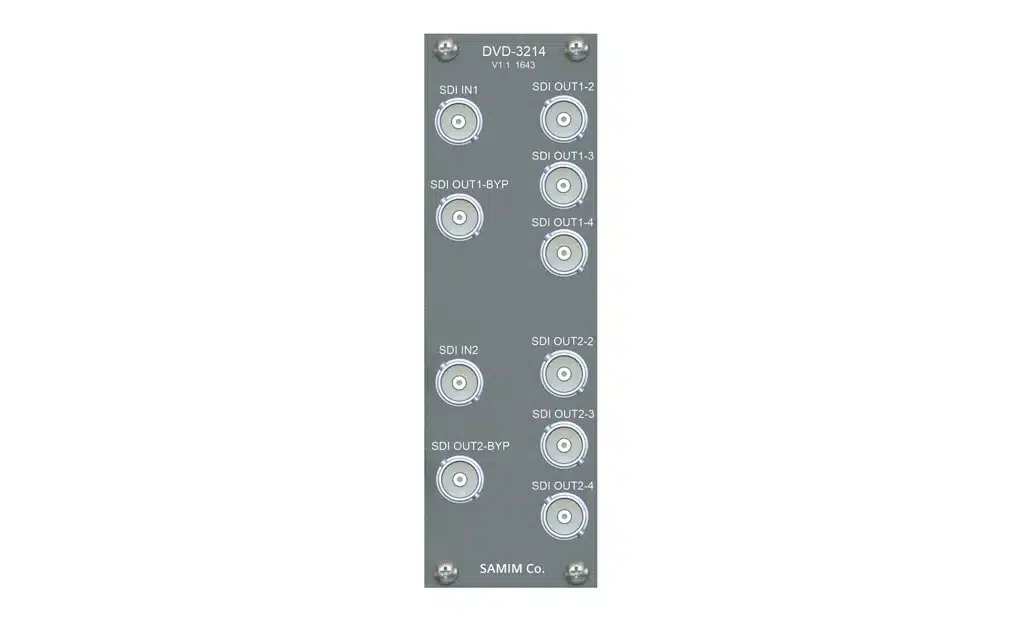

| DVD-3214-3DRP-R | Back-panel with Bypass Relay for DVD-3214 (compatible with SRM-0655) | Back Panel |

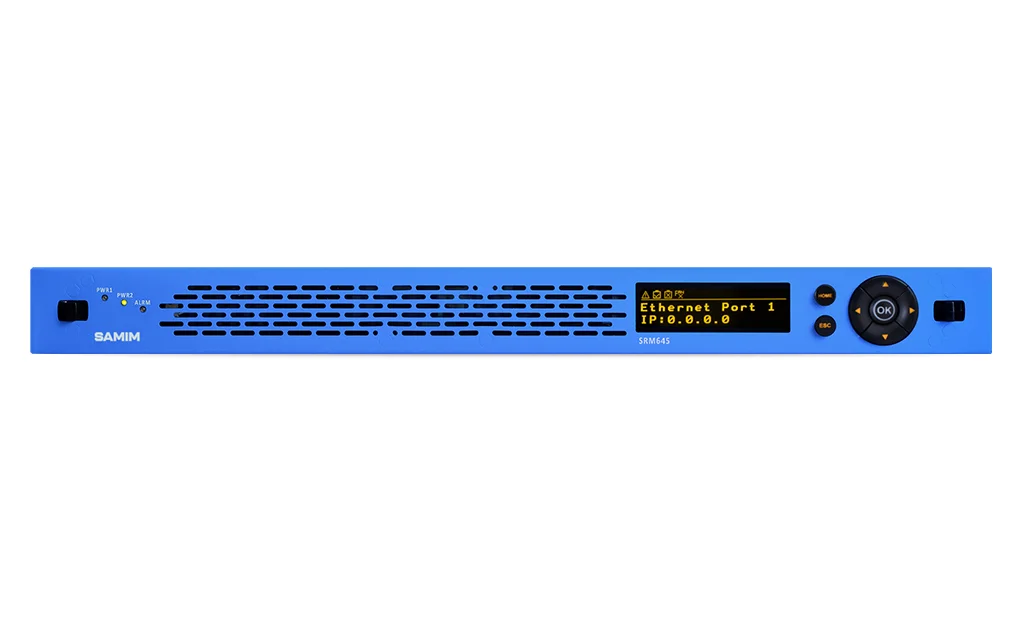

| DVD-3214-1DRP-R | Back-panel with Bypass Relay for DVD-3214 (compatible with SRM-0645) | Back panel |

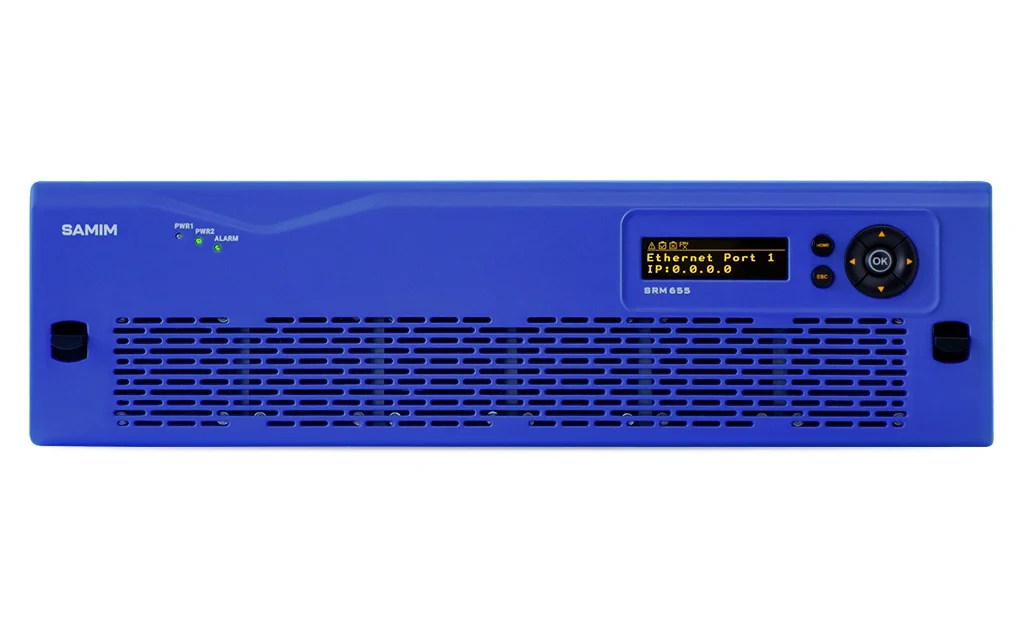

| DVD-3214-3DRP | Back-panel for DVD-3214 (compatible with SRM-0655) | Back panel |
| DVD-3214-1DRP | Back-panel for DVD-3214 (compatible with SRM-0645) | Back panel |
| DVD-3214-3RP | Single Slot Back-panel for DVD-3214 (compatible with SRM-0655), (x3 outputs for first channel & x2 outputs for second channel) | Back panel |
Download
| Download Name | Download File |
|---|---|
| DVD-3214-Datasheet | https://www.samimgroup.com/wp-content/uploads/2023/07/Samim-DVD-3214-datasheet-en.pdf |
