DVD-4214
12G SDI Video Distribution Amplifier with Built-in Crosspoint
DVD-4214 is a reliable and versatile video distribution amplifier that supports various video signal formats such as 12G, 6G, 3G, HD, SD-SDI, and DVB-ASI. It can be configured as either a single channel 1-to-8 or a dual channel 1-to-4 module.
Overview
Samim DVD-4214 is a reliable and versatile SDI distribution amplifier that supports various video signal formats such as 12G , 6G, 3G, HD, SD-SDI, and DVB-ASI. It can be configured as either a single channel 1-to-8 or a dual channel 1-to-4 module. The built-in 2×2 cross-point adds to its flexibility, allowing users to select which input they desire in single channel mode or swap inputs of two channels in double channel mode. Moreover, Samim 12G SDI distribution amplifier features automatic carrier-sensitive change-over, which provides high reliability at an affordable cost.
Features
• Dual channel operation with a robust built-in 2×2 cross-point
• Format agnostic (270 Mbps – 12 Gbps)
• Supports SMPTE ST 2082, ST 2081, 424M, 292M, and 259M standards
• Web-based user interface
• Detection of the input signal format
• Re-Clocking for jitter removal
• Cable loss compensation (12G-SDI: 80 meters, Belden 4794R)
• Hot-plug mechanism
• Transparent to ancillary and audio data
• Status LED indicators

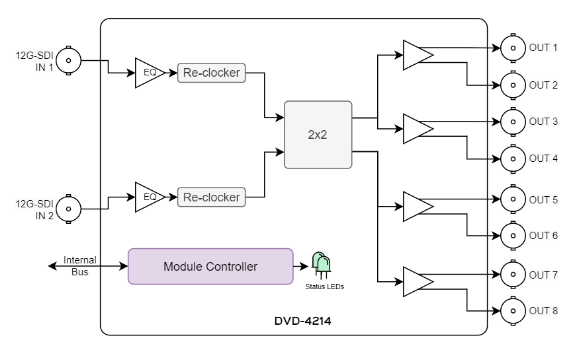

Block Diagram
Order Info
| Product | Description | Type |
|---|---|---|

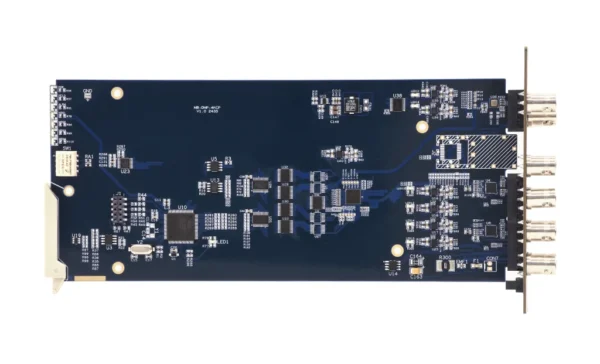

| DVD-4214 | 12G-SDI Video Distribution Amplifier with Built-in Cross- point Main Board | Main-Board |
| DVD-4214-3DRP-R | Double Slot Back-panel with Bypass Relay for DVD-4214 (compatible with SRM-0655) | Back-Panel |

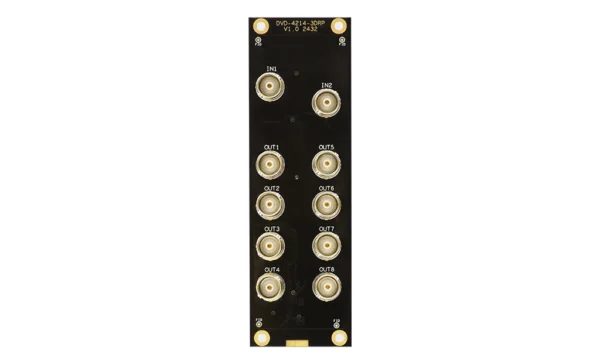

| DVD-4214-3DRP | Double Slot Back-panel for DVD-4214 (compatible with SRM-0655) | Back-panel |
| DVD-4214-3SRP-H | Single Slot Back-panel for DVD-4214 (HD-BNC Connectors, compatible with SRM-0655) | Back-panel |
Download
| Download Name | Download File |
|---|---|
| DVD-4214-Datasheet | https://www.samimgroup.com/wp-content/uploads/2025/02/Samim-DVD-4214-datasheet-en.pdf |
