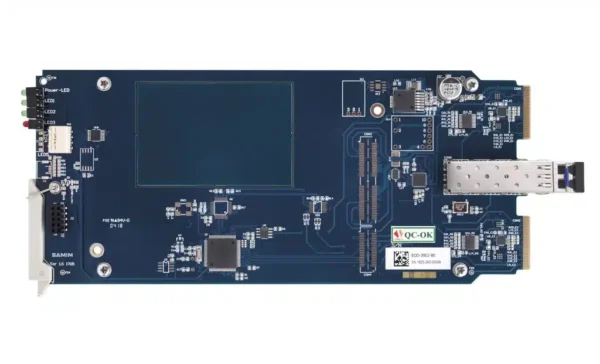

EOD-3902
Dual Channel Electrical to Optical Converter
EOD-3902 is a 3G/HD/SD-SDI/ASI electrical signals to optical signals converter. Themodule can transmit two digital video signals over fiber optic links and additionally provide two re-clocked electrical outputs per input. EOD-3902 performs automatic input signal detection, two conversions on a single board, and input signal re-clocking. Users can use different SFPs with various output powers and wavelengths related to the link length and receiver sensitivity.
Overview
The SAMIM EOD 3902 is a professional electrical to optical converter designed for the seamless transmission of digital video signals. This innovative module is built to handle 3G/HD/SD-SDI/ASI electrical signals and transform them into high-quality optical signals, making it an invaluable asset for a variety of broadcasting and communication applications. With its dual electrical to optical converter capabilities, the EOD 3902 can simultaneously transmit two digital video signals over fiber optic links, ensuring that users benefit from powerful, high-fidelity video transport.
The EOD-3902 features are input signal detection, loss compensation, input signal re-clocking and automatic changeover switching between two input signals. According to the link distance, SFP module with suitable output power and wavelength can be installed for this card. Each input has a bypass relay which is responsible for routing input signal to the output in case of a power failure. All adjustments and controls can be applied directly by onboard DIP switches and web interface remote control.
Features
• Supports SMPTE 259M, SMPTE 292M, SMPTE 424M, and DVB-ASI standards
• Input signal detection
• Optical connection via various range of SFPs
• Input change-over in the event of input loss
• Input re-clocking
• Four 3G/HD/SD-SDI/ASI electrical outputs as distribution amplifier
• Compatible with SAMIM frames
• LED status indicators
• Web-based user interface
• Remote firmware upgrade
• SNMP support
Benefits
Long-distance signal transmission: Converts electrical signals to optical signals, minimizing degradation over long distances, ideal for modern broadcasting.
Enhanced reliability: EOD-3902 Offers manual and automatic routing modes, ensuring uninterrupted signal flow during live events.
User-friendly interface: Features DIP switches, web-based control, and LED indicators for easy configuration and real-time feedback.
Accessible operation: Designed for easy use, even by non-technical staff.
Applications

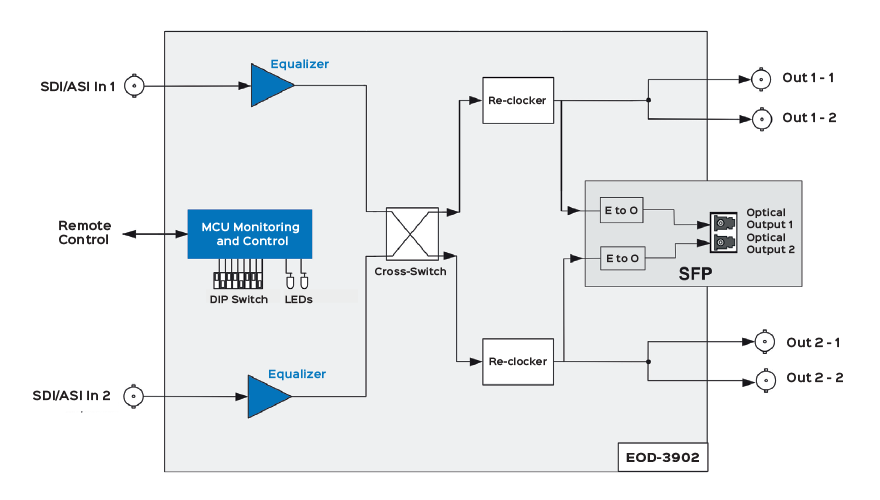

Block Diagram
Order Info
| Order Code | Description | Type |
|---|---|---|
| EOD-3902 | Dual Channel 3G/HD/SD-SDI Electrical to Optical Converter | Main Board |

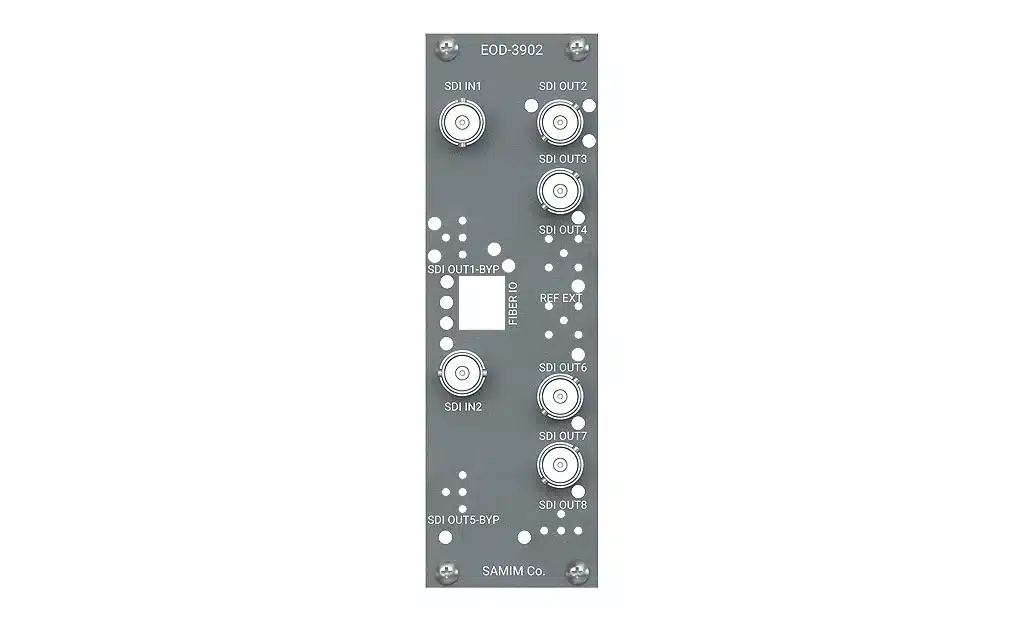

| EOD-3902-3DRP | Back-panel for EOD-3902 (compatible with SRM-0655) | Back Panel |
| EOD-3902-1DRP | Back-panel for EOD-3902 (compatible with SRM-0645) | Back Panel |
| EOD-3902-3RP | Single slot back-panel for EOD-3902 (compatible with SRM-0655) Only x1 loop output per channel | Back Panel |
| FBR-003 | Video SFP, Dual Transmitter, -5 to 0dbm, 10km, 0.27 3Gbps, 1310nm | Accessory |
| Contact Samim | An SFP with other power and wavelength specification | Accessory |
