OED-4202
12G SDI Dual Channel Optical to Electrical Converter
OED-4202 is a converter that changes optical digital video signals into 12G/6G/3G/HD/SD-SDI or DVB-ASI electrical signals. This module can receive two video signals over fiber optic links through an SFP and provides two electrical outputs per channel. It features automatic detection of input signals and performs two conversions on a single board.
Overview
OED-4202 converter changes optical digital video signals into 12G/6G/3G/HD/SD-SDI or DVB-ASI electrical signals. This module can receive two video signals over fiber optic links through an SFP and provides two electrical outputs per channel. Samim fiber to 12G SDI Converter features automatic detection of input signals and performs two conversions on a single board. Users can select different SFPs with varying sensitivity and wavelengths, adapted to the link length and transmitter power.
For control and monitoring, a web-based user interface is available. LED indicators located on the front edge of the module keep users informed about its operational status.
Features
• 2x 12G-SDI outputs per channel (one BNC and one micro BNC)
• Supports SMPTE ST 2082, ST 2081, 259M, SMPTE 292M, SMPTE 424M, and DVB-ASI standards
• Optical connection via various range of SFPs
• SFP parameters monitoring: wavelength, power, and temperature
• LED status indicators
• Web-based user interface
• Remote firmware upgrade
Applications

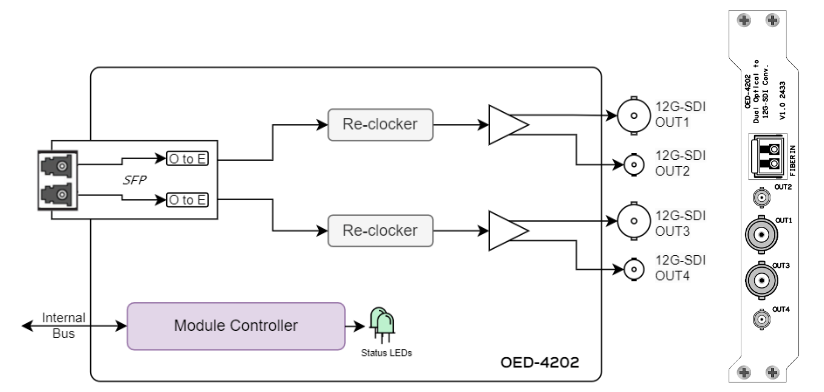

Block Diagram
Order Info
| Order Code | Description | Type |
|---|---|---|

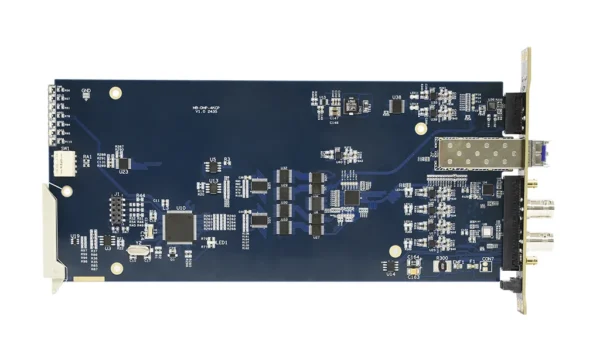

| OED-4202 | Dual Channel 3G/HD/SD-SDI Optical to Electrical Con- verter (Lite) | Main Board |

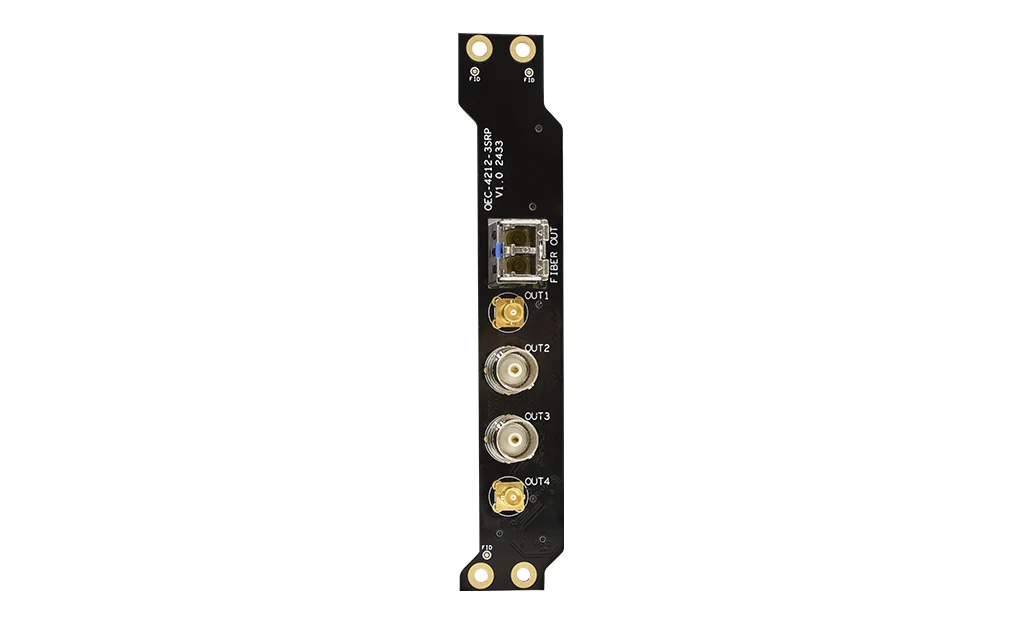

| OED-4202-3SRP | Single slot back-panel for OED-4202 (compatible with SRM-0655) | Back Panel |
| Contact Samim | For SFP specification | Accessory |
