OMD-1800

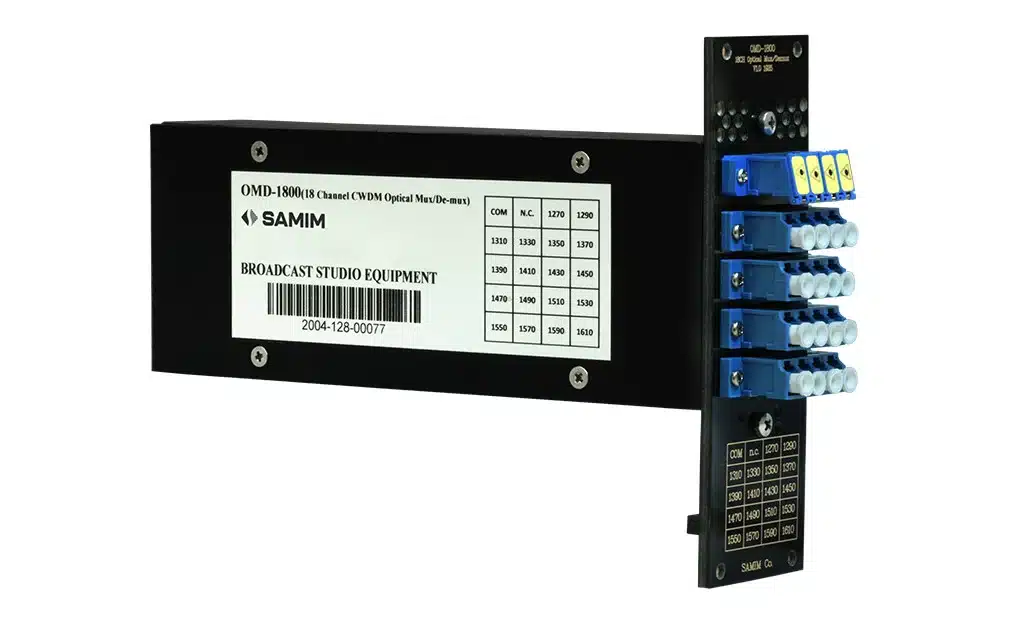

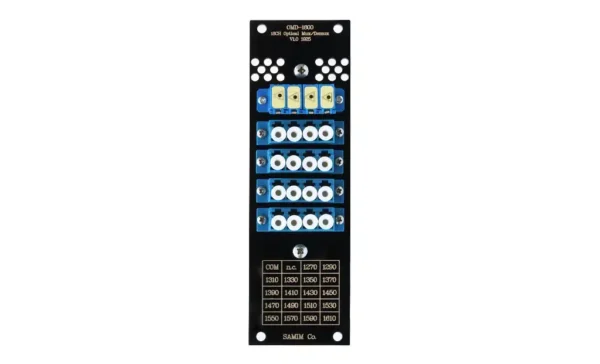

18 Channel CWDM Optical Mux/Demux

Samim OMD-1800, as a CWDM mux and demux, is a bidirectional passive optical multiplexer and de-multiplexer, allowing multiple optical signals at different wavelengths to pass through a single optical fiber link.
Samim CWDM multiplexer and de-multiplexer combines up to 18 different wavelengths from different optical fibers into a single optical fiber, transceive the link, and separates it back to maximum 18 different wavelength optical signals.

Overview

Samim CWDM Optical Mux / Demux, or OMD-1800, is designed for multi-purpose use in broadcast, telecommunications, and IT Industries. It offers an efficient and cost-effective solution for optical signal transmission. This hardware module can multiplex or merge up to 18 different optical links with different wavelengths into a single optical fiber link, transceive it, and then separate it back to maximum 18 optical signal lines. This in turn results in optimizing bandwidth without the need for utilizing additional fiber optic links.
One of the most important advantages of our CWDM mux / demux is the great scalability and flexibility concerning various needs in signal transmission workflows. This product ensures reliable transmission of 3G/HD/SD – SDI, Ethernet, data, or any other AV signals over fiber optic links, providing a streamlined way to manage audio and video sources in the least possible bandwidth consumption and precise signal transport.
The passive operation of Samim OMD-1800 is a professional feature of the product that enables it to act without any external power and to ensure very low signal degradation, maintaining the quality even over long distances. the module supports the transmission of multiple audio and visual optical channels through just a single fiber optic link, reducing the costs of infrastructure and cabling.

The optical mux/ demux can be housed in Samim 3RU or 1RU frames along with the required SDI/fiber converters for proper setup and cabling. The main use of the Samim’s module is real-time transmission of high-quality uncompressed audio-video signals in live production procedures, but meanwhile it is also possible to utilize it in other industries like telecommunications, IT, … to transmit any kind of data over fiber optic as easy and smooth as possible.

Specifications
Model Channel Support Passive CWDM Operation Wavelength Spacing Supported Formats Form Factor Insertion Loss Two-Way Communication
OMD-1800 CWDM Mux/Demux Module18 wavelengths in the 1270nm to 1610nm spectrumNo external power required for the multiplexer20nm channel spacing, compliant with ITU-T G694.2Compatible with 3G/HD/SD-SDI, DVB/ASI, and Ethernet signalsModular design, compatible with SAMIM 3RU frames for simple installation and cablingLow insertion loss for high-quality signal transmissionSupports simultaneous two-way transmission over a single fiber, utilizing CWDM mux/demux technology for optimal efficiency
Features

18-channel passive optical multiplexer and demultiplexer
Supports various type of signals such as 3G/HD/SD-SDI, AES, DVB-ASI, Ethernet, etc.
Compliant with ITU-T G694.2 standard
LC/UPC connectors
Passive Design to work without external power and maintain the original quality of the signals in long distances
One slot occupation in Samim’s frames
Long distance coverage of multiple signals on a single fiber link

Benefits
  • Maximized Bandwidth: Samim Optical Mux Demux module enables efficient use of optic infrastructure by combining multiple signals onto a single optical fiber, reducing the need for additional links.
  • Passive Operation: it requires no external power, minimizing operational costs and complexity.
  • Versatile Compatibility: Samim OMD-1800 supports multiple formats, including 3G/HD/SD-SDI, DVB/ASI, and Ethernet, making it an ideal fiber optic mux Demux for diverse broadcast applications.
  • ITU-T G694 Standard compliance: Our CWDM Mux complies with the ITU-T G694 standard, featuring 20 nm wavelength spacing for precise signal transmission.
  • Enhanced Network Efficiency: the fiber optic mux / demux supports the transmission of multiple audio and visual optical channels through a single fiber, reducing the costs of infrastructure and cabling.
  • Broad Applications: This CWDM multiplexer / demultiplexer module is suitable for telecommunication networks, urban Ethernet systems, and cable TV, making it an all-in-one solution for high-bandwidth data transfer.
  • Low Insertion Loss: The passive nature of OMD-1800 ensures low signal degradation, maintaining signal quality even over long distances.
  • Modular Design: it is designed to fit easily into SAMIM 3RU frames. It simplifies integration and cabling in broadcast environments, ensuring easy scalability.



Applications
Broadcast Networks: Our Optical Mux and Demux is ideal for transmitting high-definition video and audio signals across long distances using just a single fiber optic link. Its passive design makes it a perfect choice for SDI fiber multiplexing in live broadcast scenarios
Telecommunications Industry: CWDM passive multiplexer supports telecommunication systems, combining Ethernet, telephony, and video signals in a single fiber mux, ensuring high-capacity signal transmission in both urban and remote areas.
Cable TV Networks: CWDM Mux/Demux modules enable multiple video channels to be transmitted efficiently over a single fiber optic link, reducing the need for multiple physical lines

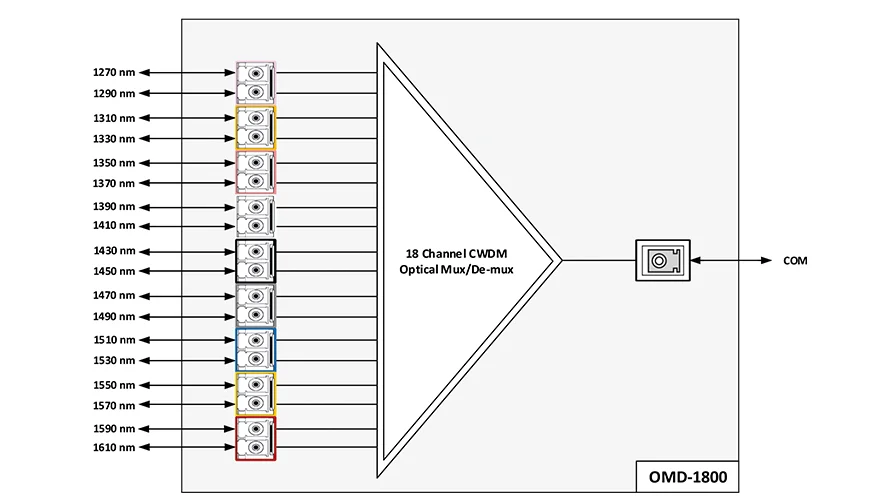

Block Diagram

Order Info
Order Code Description Type
OMD-180018-Channel CWDM Optical Mux/Demux with integrated back-panel (compatible with SRM-655)Main Board + Integrated Back Panel
Download

Related Product

EOD-3902

EOD-3902

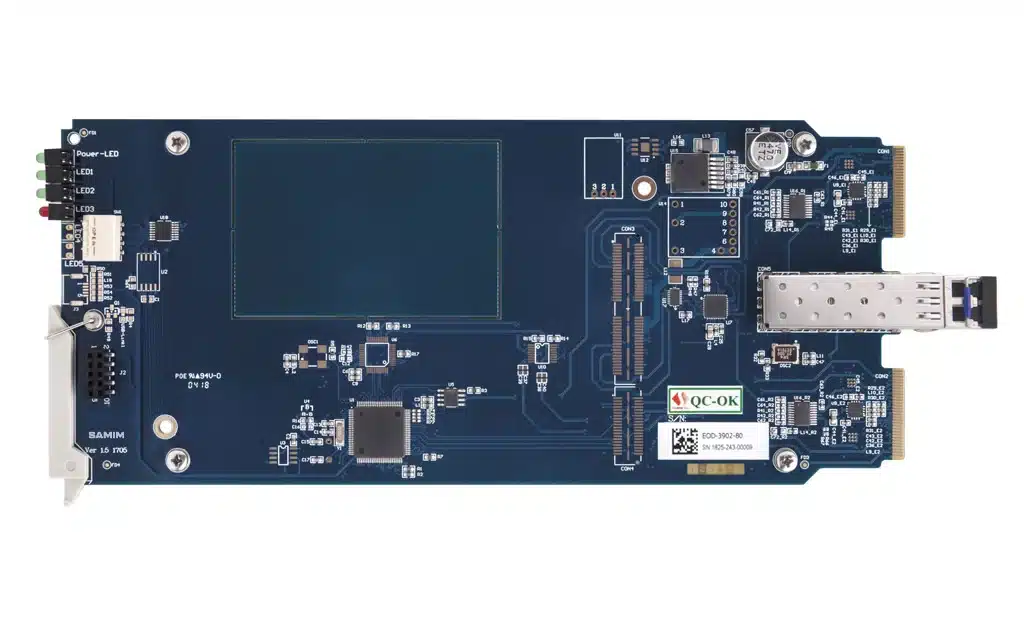

The SAMIM EOD 3902 is a professional electrical to optical...
OED-3904

OED-3904

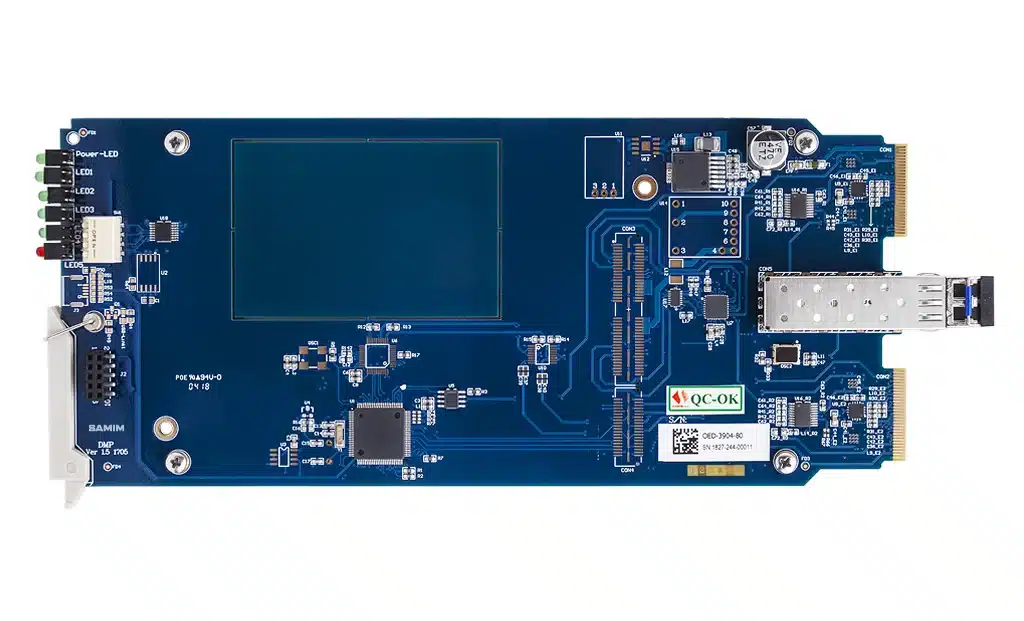

The SAMIM OED 3904 is a professional optical to electrical...
SRM-0655-1

SRM-0655

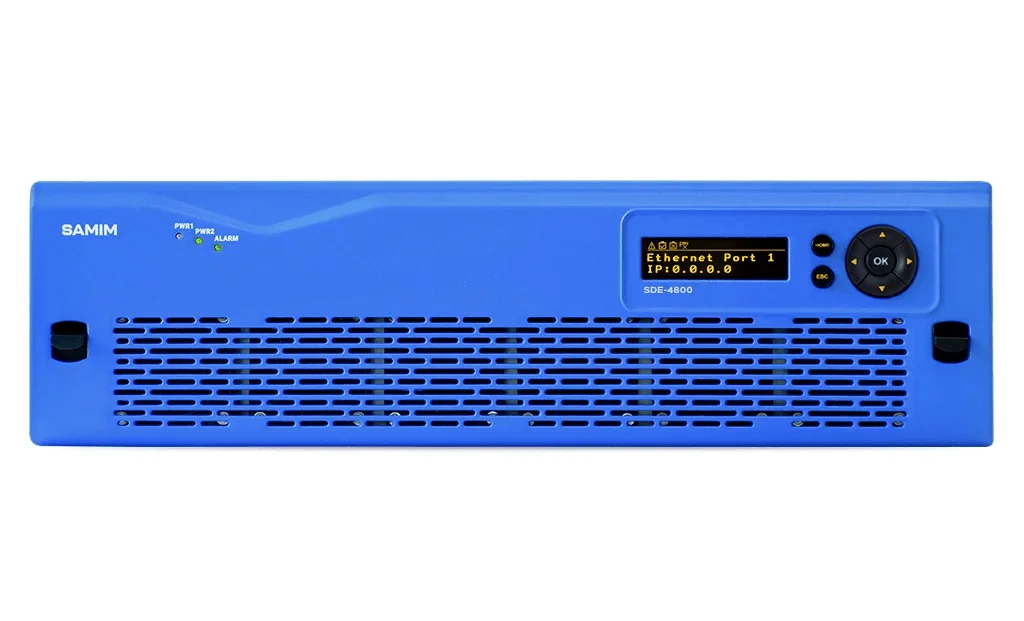

The SRM-0655 frame is a 3RU (19” rack) frame designed...
