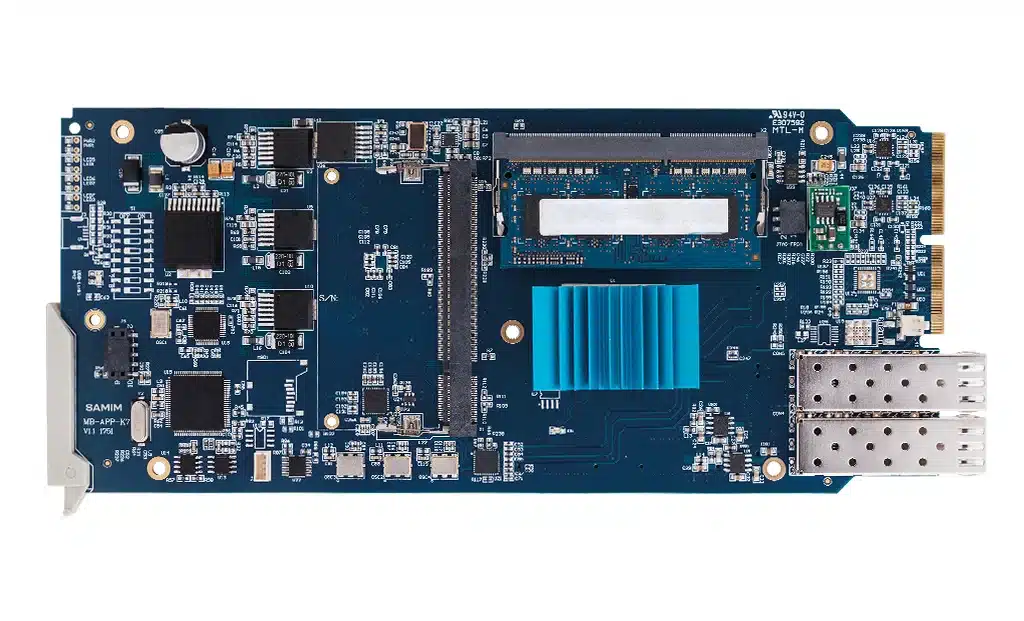

SAE-3390

3G/HD/SD-SDI Audio Embedder

SAE-3390 is a compelling and flexible solution for embedding eight audio pairs to a 3G/HD/SD-SDI signal from analog/digital audio inputs. The audio processor core can also delay audio pairs for up to 10 seconds and apply the desired gain.

Overview

SAE-3390 is a compelling and flexible solution for embedding eight audio pairs to a 3G/HD/SD-SDI signal from analog/digital audio inputs. The audio processor core can also delay audio pairs for up to 10 seconds and apply the desired gain.
The module also features optical I/O, frame synchronization, timing adjustment, ancillary data transparency, and test tone/pattern generation. Control and monitoring can be done using the user-friendly web-based UI and the frame’s front control panel.

Features
  • Eight pair audio embedder
  • Up to x8 AES inputs
  • Up to x8 analog mono audio inputs
  • Frame synchronizer with tri-level or bi-level reference input
  • Horizontal/Vertical timing adjustment with respect to reference input
  • Auto freeze, black, last frame, or pattern on input video loss
  • Internal pattern generator
  • Audio processor: Any to any input/output pair routing, gain control on each channel, invert and mute control on each channel,
    swap left/right audio of each pair, silence/overload detection
  • Audio delayer: Up to 10 seconds for each processed pair (1ms steps)
  • Internal test tone generator
  • Easy configuration via web-based user interface
  • Firmware Remote Upgrade
  • Optical I/O via an SFP
  • Two identical outputs (BNC)
  • Two audio I/O slots
  • Ancillary data pass-through
Order Info
Order Code Description Type
SAE-33903G/HD/SD-SDI Audio Embedder and Frame Synchronizer Main BoardMain Board

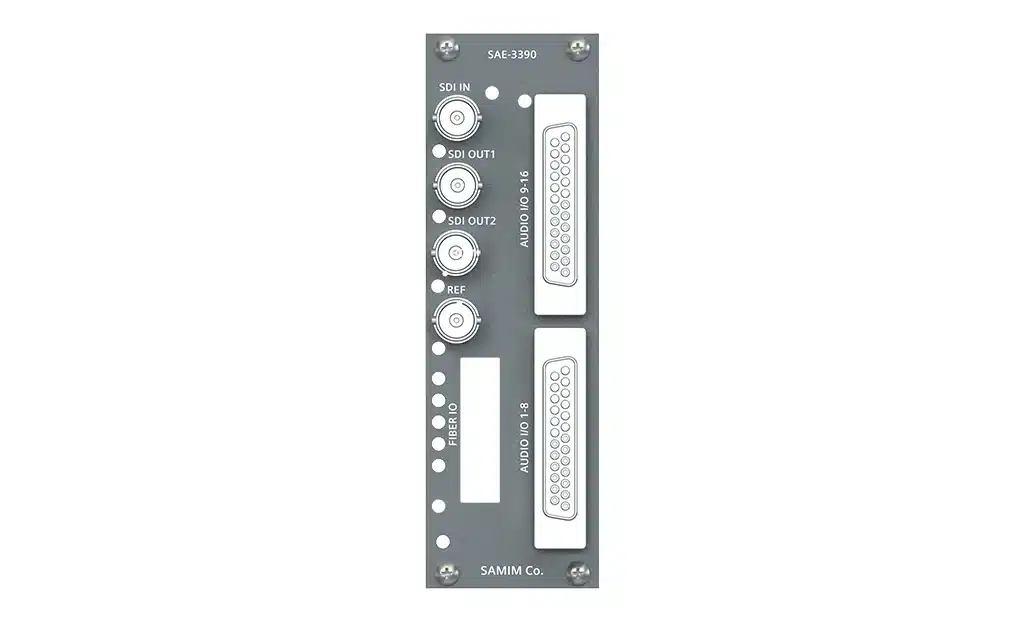

SAE-3390-3DRPBack-panel for SAE-3390 (compatible with SRM-0655)Back Panel
SAE-3390-1DRPBack-panel for SAE-3390 (compatible with SRM-0645)Back Panel
MOD-APP-DAI88-Channel Digital Stereo Audio Input Module for SAE-3390Option for Audio I/O Slot #1
MOD-APP-DAI44-Channel Digital Stereo Audio Input Module for SAE-3390Option for Audio I/O Slot #1
MOD-APP-AAI88-Channel Analog Mono Audio Input Module for SAE-3390Option for Audio I/O Slot #2
MOD-APP-AAI44-Channel Analog Mono Audio Input Module for SAE-3390Option for Audio I/O Slot #2

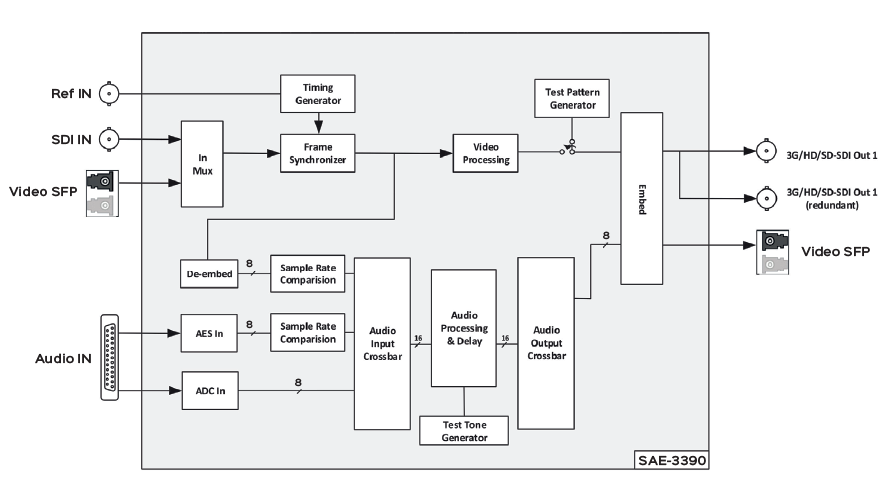

Block Diagram
Product-SAE-3390
Specifications
Applications
Download
Download Name Download File
SAE-3390-Datasheethttps://www.samimgroup.com/wp-content/uploads/2023/07/Samim-SAE-3390-datasheet-en.pdf

Related Product

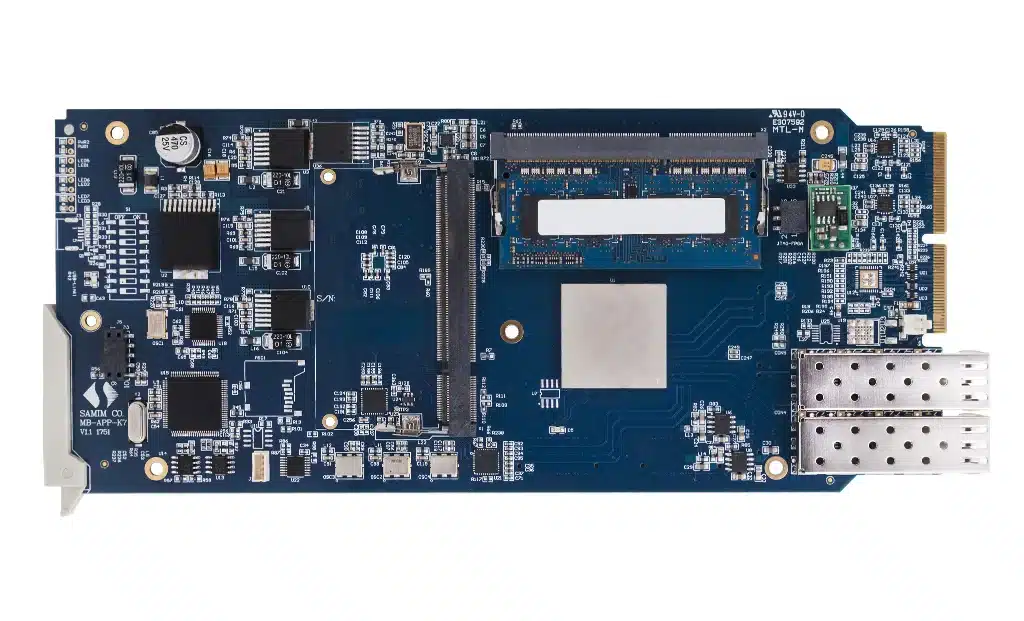

SAD-3395

SAD-3395

SAD-3395 is a highly flexible solution for De-embedding eight audio...
UDC-3455-1

UDC-3455

SAMIM UDC-3455 is a broadcast quality modular up / down...

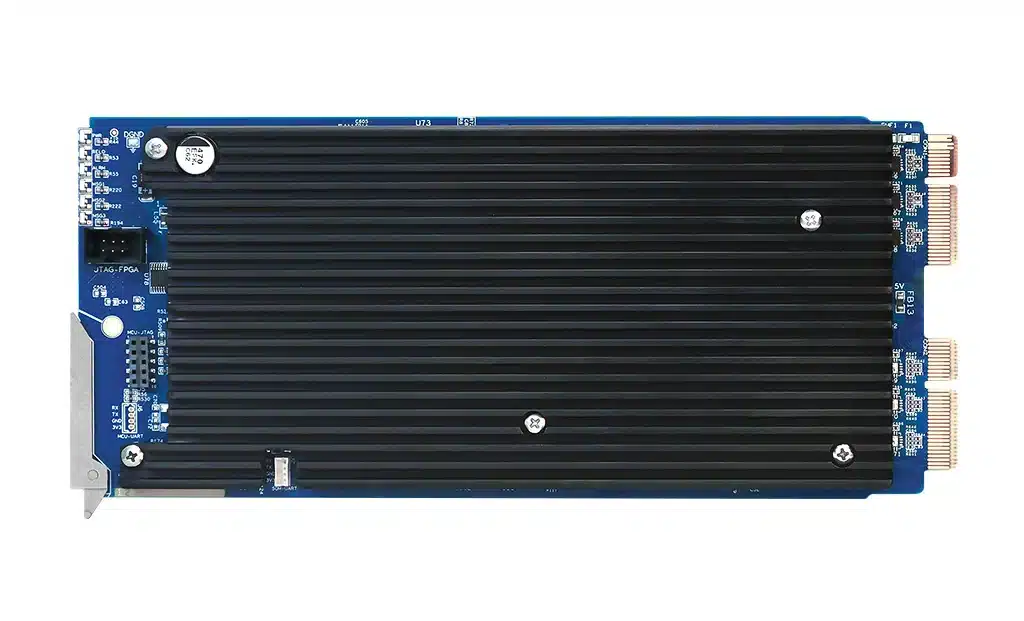

SKY-3540
