SDE-3206

32x6 3G/HD/SD-SDI/ASI Router

SAMIM SDE-3206 is a perfect digital video router with dual clean and quiet outputs. These outputs provide seamless video and quiet embedded audio switching which makes the SDE-3206 an ideal solution in mission critical applications.

SDE-3206 is a format independent router and supports 3G/HD/SD-SDI and DVB-ASI signals.

Overview

SAMIM SDE-3206 is a perfect digital video router with dual clean and quiet outputs. These outputs provide seamless video and quiet embedded audio switching which makes the SDE-3206 an ideal solution in mission critical applications. The SDE- 3206 is a format independent router and supports 3G/HD/SD-SDI and DVB-ASI signals. Internal frame synchronizers are implemented in output blocks which there is no need for synchronization at sources without any timing skew and delay problems. It could be as a unified solution to bypass video mixer. Therefore, on-air disasters can be avoided. Also, there are three outputs for normal routing function. Compact design of 1RU frame and front panel pushbuttons with full access to all cross points are some of the main advantages. This Product is fully compatible with SAMIM control panels.

Features
  • Reference signal synchronization
  •  Three clean and quiet outputs (3G/HD/SD-SDI)
  •  Three normal data paths (3G/HD/SD-SDI, DVB-ASI) routing
  •  Internal frame synchronizers

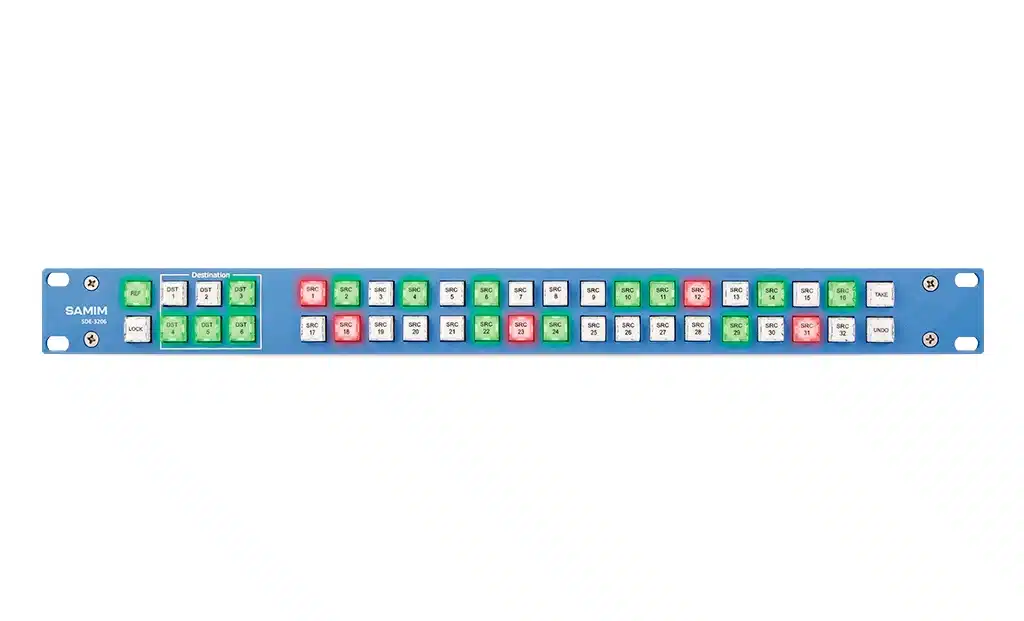

  •  Front control panel with full access to cross points
  •  Configuration and access level definition
  •  Re-clocked outputs
  •  Compatible with SAMIM control panels
Order Info
Order Code Description Type
SDE-3206-L1RU 32×6 3G/HD/SD-SDI/ASI RouterBase #1
SDE-3206-BPS1RU 32×6 3G/HD/SD-SDI/ASI Router with BPS Front PanelBase #2
SDE-3206-L-CL1RU 32×6 3G/HD/SD-SD Router including 3-Channel Clean and Quiet Switching OptionBase #3
SDE-3206-BPS-CL1RU 32×6 3G/HD/SD-SDI Router with BPS Front Panel including 3-Channel Clean and Quiet Switching OptionBase #4

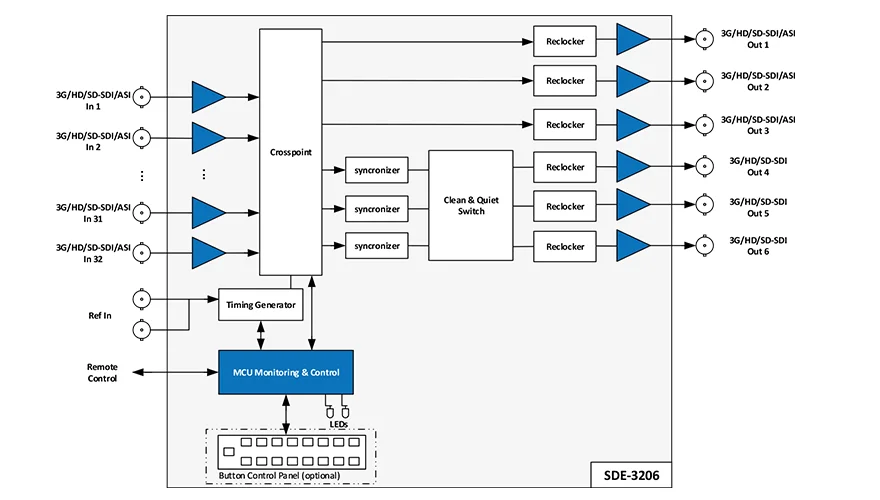

Block Diagram
SDE-3206-block diyagram
Specifications
Applications
- Production and live production TV studios
- Master control rooms
- Monitoring centers
- OB vans
- Emergency switch to bypass studio control rooms
