SRM-0655

3RU Frame with Controller and Redundant Power Supplies

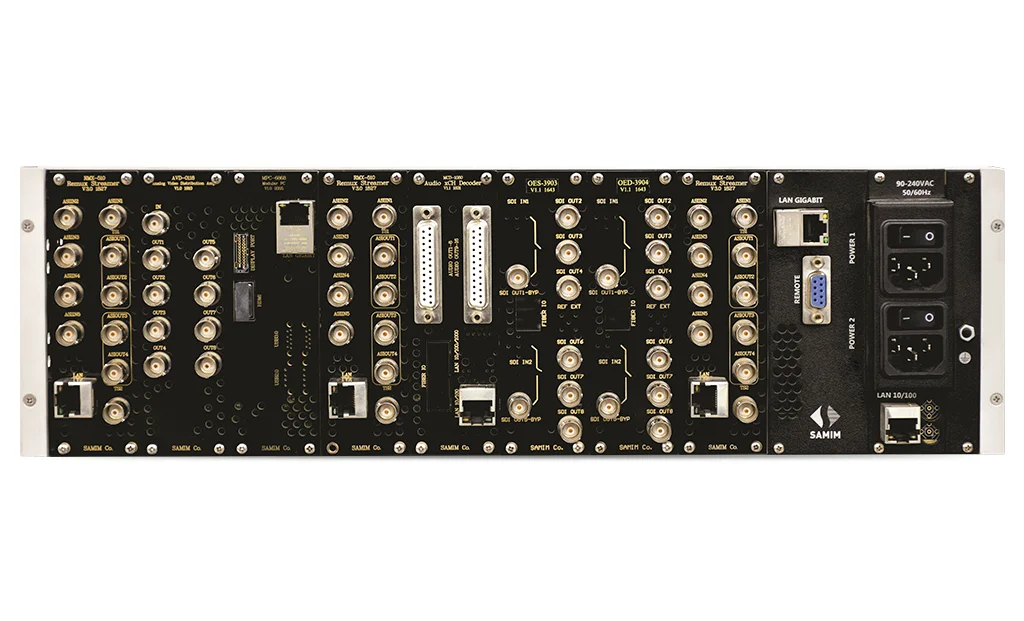

The SRM-0655 frame is a 3RU (19” rack) frame designed for SAMIM modular products that can house up to 15 modules with a single slot back panel or up to eight modules with a double slot back panel. The frame provides required power (from redundant AC/DC bricks), cooling, and control and monitoring for installed modules.

Overview

The SRM-0655 frame is a 3RU frame that has been specifically designed to accommodate Samim modular products. This frame can house between 8 to 15 modules, depending on the type of rear panels utilized, while providing the required power (from redundant AC/DC bricks), cooling, and control and monitoring functions for all installed modules.
Leveraging its internal buses and web-based UI, the SRM-0655 frame allows users to monitor, control, and upgrade installed modules, view and export system logs, perform access control, check alarms, and monitor the proper function of power supplies and the fan module.

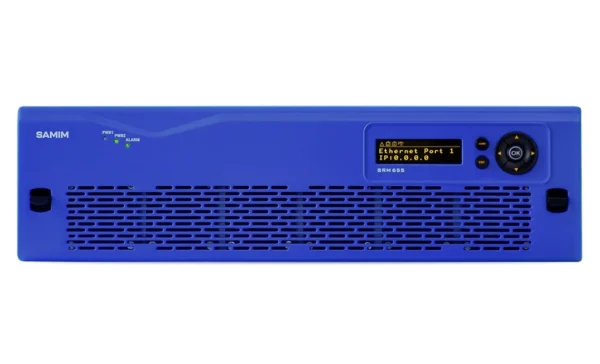

The frame structure has been designed to allow operators to easily and quickly install or change modules, power bricks, and service the cooling fans. In instances where additional cooling is required, an additional 1RU fan unit is available to order. The frame can be controlled and monitored through SNMP and web interface, in addition to the front panel keypad and display.

Specifications
Operational Mechanical Electrical Environmental
Capacity: Up to 15 modules with single-slot back panels, up to 8 modules with dual-slot back panelsDimensions: 48.2x13.2x28.3 cm (3RU, 19-inch rack)Voltage: 100-240 VAC, 50-60HzTemperature: 5 ◦C to 40 ◦C
Power Supplies: AC-to-DC, 1+1 RedundantDimensions with EFU: 48.2x17.5x28.3 cm (4RU)Power: <225W (Depending on the installed modules & fan speed)Humidity: 0% to 90% (non-condensing)
Number of Fans: 6 (front-to-back airflow)Weight: 7.6 kg (with x2 power bricks)Electromagnetic Compliance: CISPR 32:2015, CISPR 35:2016, IEC 61000-4
Network: 1x LAN 10/100/1000, RJ45Safety: IEC 60950-1
Features
  • Modular design, making it adaptable to varying needs
  • Accommodates up to 15 modules
  • High reliability with two redundant power supplies
  • Hot pluggable modules and power supplies for easy replacement
  • Intuitive web-based user interface with built-in server
  • Front panel display with keypad for local monitoring and control
  • Remote firmware upgrade
  • SNMP and REST-API support
  • Constant monitoring of power supplies and fans key parameters
  • Store and export logs of modules and frame for troubleshooting and analysis
  • Automatic or manual fan control
  • Access control for authorized system access
Order Info
Order Code Description Type
SRM-0655-225-T-FL3RU Frame with Controller Module with 1x 225W Power SupplyBase
EFU-6518External Fan Unit (1RU)Optional
PSM-6522Redundant 225W Power Supply for SRM-0655Base/Optional
